GENERAL

L3560, L4060, L4760, L5060, L5460, L6060, WSM

G-57

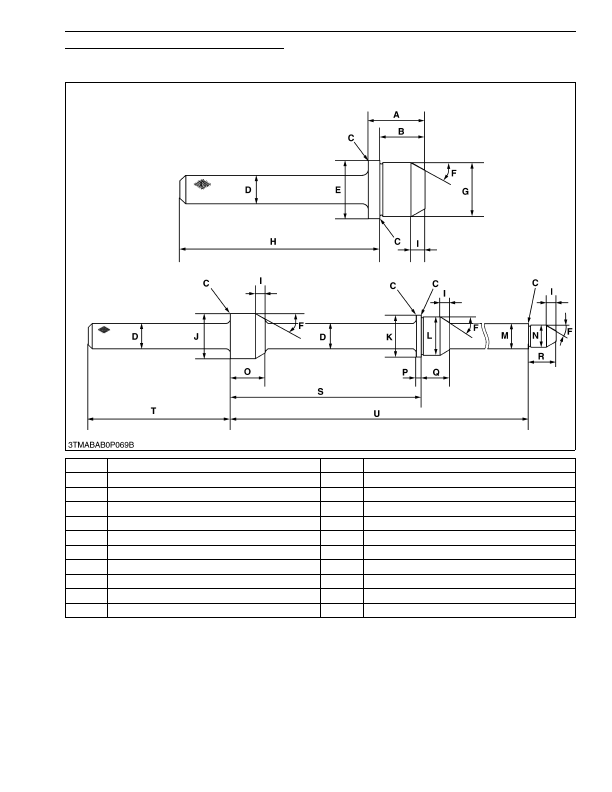

Balancer Metal Replacing Tool (for Removing)
Application

• To remove the metal bearing.

9Y1210824GEG0104US0

A

41 mm (1.6 in.)

L

41.934 to 41.950 mm dia. (1.6510 to 1.6515 in. dia.)

B

32.5 mm (1.28 in.)

M

24.959 to 24.980 mm dia. (0.98264 to 0.98346 in. dia.)

C

Chamfer 0.3 mm (0.01 in.)

N

21.947 to 21.960 mm dia. (0.86406 to 0.86456 in. dia.)

D

25 mm dia. (0.98 in. dia.)

O

36 mm (1.4 in.)

E

46.950 to 46.975 mm dia. (1.8485 to 1.8494 in. dia.)

P

5 mm (0.2 in.)

F

0.52 rad (30 °)

Q

29.0 mm (1.14 in.)

G

43.934 to 43.950 mm dia. (1.7297 to 1.7303 in. dia.)

R

28.0 mm (1.10 in.)

H

148.5 mm (5.846 in.)

S

195.25 to 195.75 mm (7.6870 to 7.7066 in.)

I

10 mm (0.39 in.)

T

145 mm (5.71 in.)

J

46.50 to 46.75 mm dia. (1.831 to 1.840 in. dia.)

U

384.75 to 385.25 mm (15.148 to 15.167 in.)

K

44.950 to 44.975 mm dia. (1.7697 to 1.7706 in. dia.)

KiSC issued 03, 2016 A
