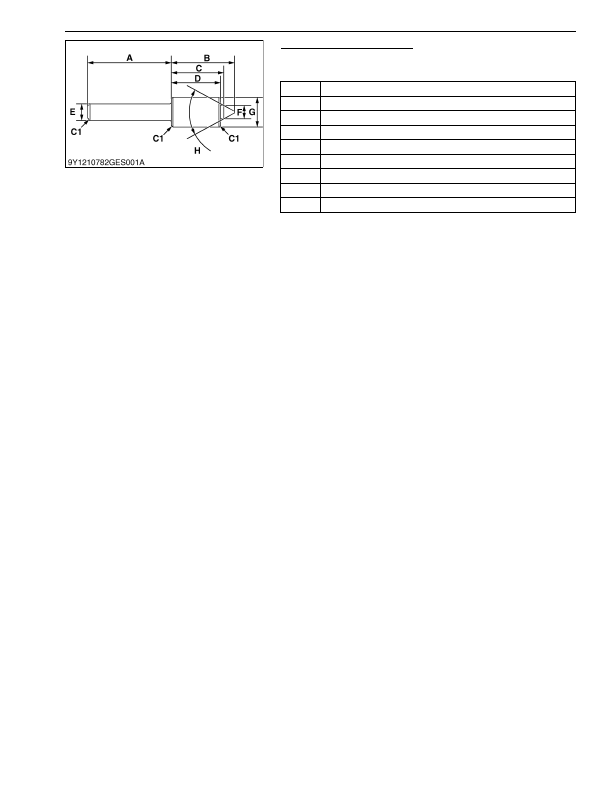

Injection Top Correction Jig
Application

• To detects and position the sensor in top-dead center position.

9Y1210824GEG0132US0

A

60 mm (2.4 in.)

B

45 mm (1.8 in.)

C

37.3 mm (1.47 in.)

D

3.5 mm (1.4 in.)

E

12 mm dia. (0.47 in. dia.)

F

10 mm dia. (0.39 in. dia.)

G

20.34 to 20.50 mm dia. (0.8008 to 0.8070 in. dia.)

H

1.0 rad (60 °)

C1

Chamfer 1.0 mm (0.079 in.)
