GENERAL

L3560, L4060, L4760, L5060, L5460, L6060, WSM

G-60

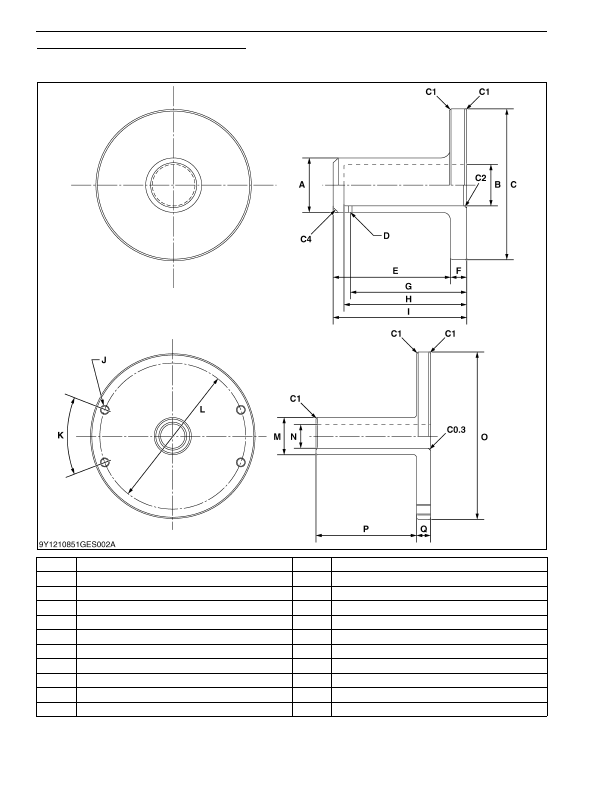

Bearing Case Cover Oil Seal Replacing Tool
Application

• To install bearing case cover oil seal.

9Y1210824GEG0106US0

A

42 mm dia. (1.7 in. dia.)

L

129 mm dia. (5.08 in. dia.)

B

32 to 32.025 mm dia. (1.260 to 1.261 in. dia.)

M

31.950 to 31.975 mm dia. (1.2579 to 1.2588 in. dia.)

C

116 mm dia. (4.57 in. dia.)

N

22 mm dia. (0.87 in. dia.)

D

3 mm dia. (0.1 in. dia.)

O

145 mm dia. (5.71 in. dia.)

E

88 mm (3.5 in.)

P

90 mm (3.5 in.)

F

12 mm (0.47 in.)

Q

12 mm (0.47 in.)

G

88 mm (3.5 in.)

C0.3

Chamfer 0.3 mm (0.01 in.)

H

92 mm (3.6 in.)

C1

Chamfer 1.0 mm (0.039 in.)

I

100 mm (3.94 in.)

C2

Chamfer 2.0 mm (0.079 in.)

J

M8 × Pitch

C4

Chamfer 4.0 mm (0.2 in.)

K

0.70 rad (40 °)
