GENERAL

L3560, L4060, L4760, L5060, L5460, L6060, WSM

G-61

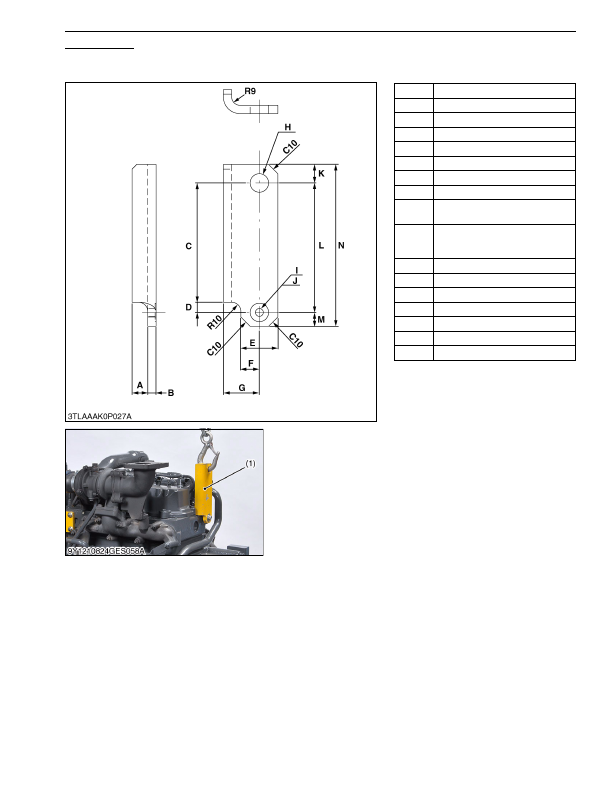

Engine Hook 1
Application

• Use for hooking the V2403 engine. Use this engine hook 1 with the engine hook 2.

9Y1210824GEG0107US0

A

17 mm (0.67 in.)

B

9 mm (0.35 in.)

C

129 mm (5.08 in.)

D

10.8 to 11.2 mm (0.426 to 0.440 in.)

E

40 mm (1.6 in.)

F

20 mm (0.79 in.)

G

39 mm (1.5 in.)

H

20 mm Hole (0.79 in. Hole)

I

8.50 to 8.80 mm Drilled hole

(0.335 to 0.346 in. Drilled hole)

J

20 mm Spot-faced hole 1 mm deep

(0.79 in. Spot-faced hole 0.04 in.

deep)

K

20 mm (0.79 in.)

L

140 mm (5.51 in.)

M

15 mm (0.59 in.)

N

175 mm (6.89 in.)

C10

Chamfer 10 mm (0.39 in.)

R9

Radius 9.0 mm (0.35 in.)

R10

Radius 10 mm (0.39 in.)

(1) Engine Hook 1
