GENERAL

L3560, L4060, L4760, L5060, L5460, L6060, WSM

G-62

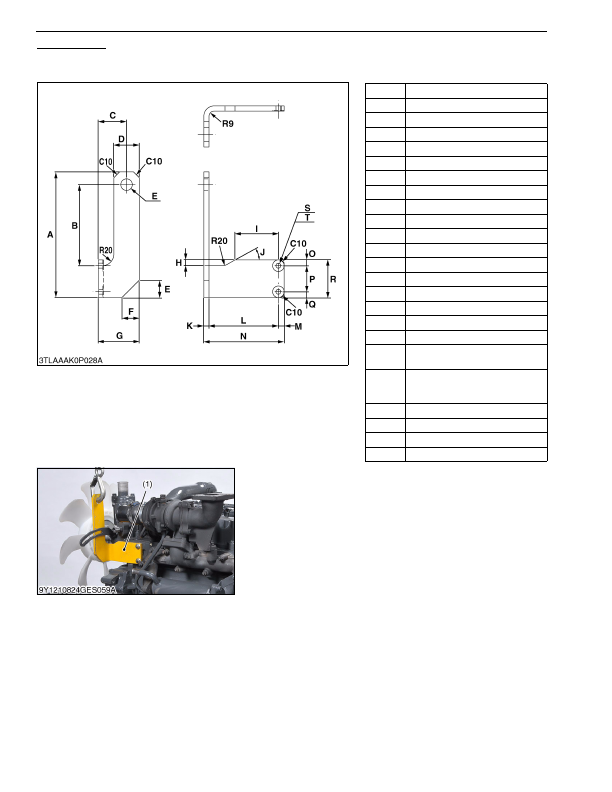

Engine Hook 2
Application

• Use for hooking the V2403 engine. Use this engine hook 2 with the engine hook 1.

9Y1210824GEG0108US0

A

217 mm (8.54 in.)

B

140 mm (5.51 in.)

C

49 mm (1.9 in.)

D

44 mm (1.7 in.)

E

20 mm Hole (0.79 in. Hole)

F

30 mm (1.2 in.)

G

71 mm (2.8 in.)

H

10 mm (0.39 in.)

I

85 mm (3.3 in.)

J

0.52 rad (30 °)

K

9.0 mm (0.35 in.)

L

120 mm (4.72 in.)

M

10 mm (0.39 in.)

N

139 mm (5.12 in.)

O

10 mm (0.39 in.)

P

44.7 to 45.3 mm (1.76 to 1.78 in.)

Q

10 mm (0.39 in.)

R

65 mm (2.6 in.)

S

2 × 8.50 to 8.80 mm Drilled hole

(2 × 0.335 to 0.346 in. Drilled hole)

T

20 mm Spot-faced hole 1 mm deep

(0.79 in. Spot-faced hole 0.04 in.

deep)

C10

Chamfer 10 mm (0.39 in.)

R9

Radius 9.0 mm (0.35 in.)

R10

Radius 10 mm (0.39 in.)

R20

Radius 20 mm (0.79 in.)

(1) Engine Hook 2

KiSC issued 03, 2016 A
