GENERAL

L3560, L4060, L4760, L5060, L5460, L6060, WSM

G-64

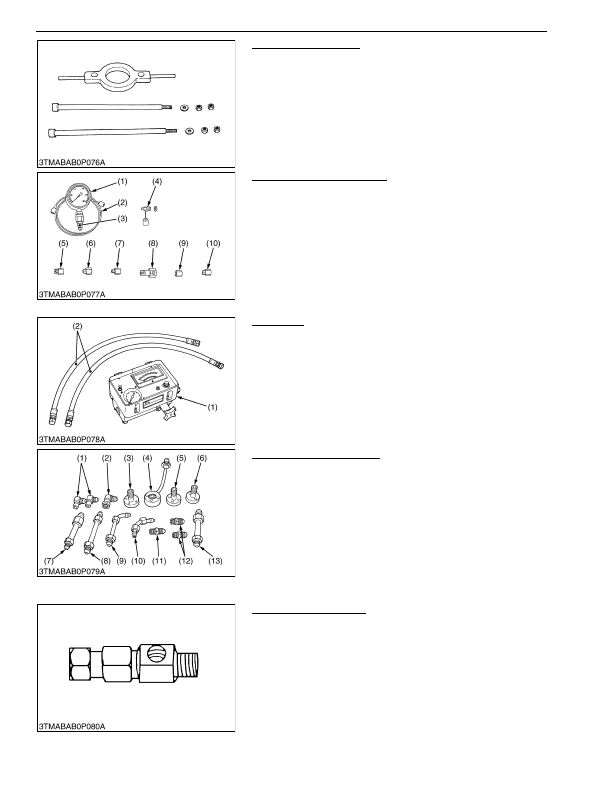

Rear Axle Cover Puller
Code No.

• 07916-51041

Application

• Use to remove a rear axle cover from rear axle.

WSM000001GEG0035US0

Relief Valve Pressure Tester
Code No.

• 07916-50045

Application

• This allows easy measurement of relief set pressure.

WSM000001GEG0027US0

Flow Meter
Code No.

• 07916-52791 (Flow Meter)

• 07916-52651 (Hydraulic Test Hose)

Application

• This allows easy testing of hydraulic system.

WSM000001GEG0036US0

Adaptor Set for Flow Meter
Code No.

• 07916-54031

Application

• Use for test of the hydraulic system.

WSM000001GEG0037US0

Power Steering Adaptor
Code No.

• 07916-54021

Application

• Use to measure the relief valve setting pressure for power

steering.

WSM000001GEG0038US0

(1) Gauge (07916-50322)

(2) Cable (07916-50331)

(3) Threaded Joint (07916-50401)

(4) Threaded Joint (07916-50341)

(5) Adaptor

B

(M18 × P1.5)

(07916-50361)

(6) Adaptor

C

(PS3/8) (07916-50371)

(7) Adaptor

D

(PT1/8) (07916-50381)

(8) Adaptor

E

(PS3/8) (07916-50392)

(9) Adaptor

F

(PF1/2) (07916-62601)

(10) Adaptor

58

(PT1/4) (07916-52391)

(1) Flow Meter

(2) Hydraulic Test Hose

(1) Adaptor

52

(2) Adaptor

53

(3) Adaptor

54

(4) Adaptor

61

(5) Adaptor

62

(6) Adaptor

63

(7) Adaptor

64

(8) Adaptor

65

(9) Adaptor

66

(10) Adaptor

67

(11) Adaptor

68

(12) Adaptor

69

(13) Hydraulic Adaptor

1

KiSC issued 03, 2016 A
