Pinion Shaft Remover; Hydraulic Arm Shaft Bushing Press-Fitting Tool- Page 95

GENERAL

L3560, L4060, L4760, L5060, L5460, L6060, WSM

G-66

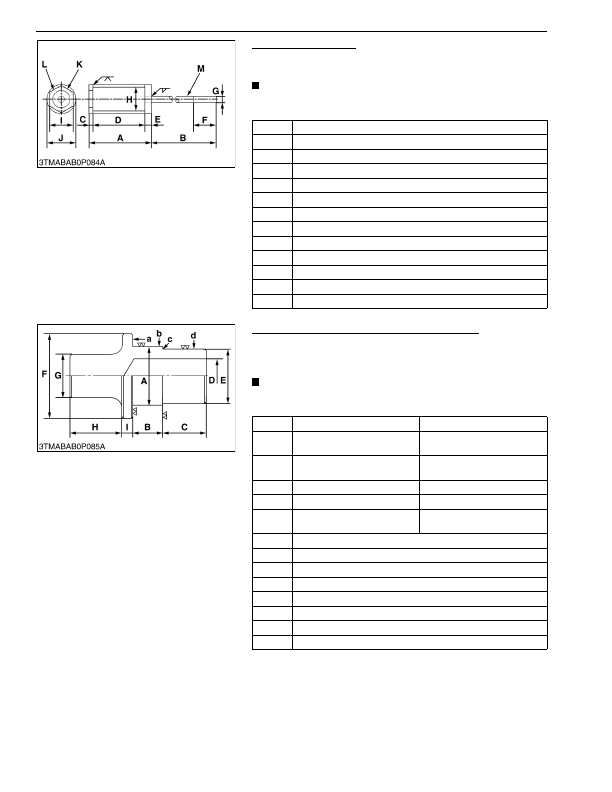

Pinion Shaft Remover
Application

• Use for removing a pinion shaft.

NOTE

• The special tool is not available, so make it. Refer to the

figure.

9Y1210824GEG0109US0

Hydraulic Arm Shaft Bushing Press-Fitting Tool
Application

• Use  for  replacing  the  hydraulic  arm  shaft  bushings  in  the

hydraulic cylinder body.

NOTE

• The special tools are not available, so make them. Refer to

the figure.

9Y1210824GEG0110US0

A

106 mm (4.17 in.)

B

350 mm (13.78 in.)

C

6 mm (0.24 in.)

D

90 mm (3.54 in.)

E

10 mm (0.39 in.)

F

40 mm (1.57 in.)

G

10 mm (0.39 in.)

H

35.6 mm (1.40 in.)

I

36 mm (1.42 in.)

J

41.6 mm (1.64 in.)

K

Part code No. 3A201-4130 nut

L

M27 × P1.5

M

M10 × P1.25

Right

Left

A

54.7 to 54.9 mm

(2.1535 to 2.1614 in.)

49.7 to 49.9 mm

(1.9567 to 1.9646 in.)

B

24.5 to 25.5 mm

(0.9646 to 1.0039 in.)

21.5 to 22.5 mm

(0.8465 to 0.8858 in.)

C

40 mm (1.57 in.)

40 mm (1.57 in.)

D

32 mm (1.26 in.)

30 mm (1.18 in.)

E

49.7 to 49.9 mm

(1.9567 to 1.9646 in.)

44.7 to 44.9 mm

(1.7598 to 1.7677 in.)

F

70 mm dia. (2.76 in. dia.)

G

40 mm dia. (1.57 in. dia.)

H

50 mm (1.97 in.)

I

10 mm (0.39 in.)

a

6.3 μm (250 μin.)

b

6.3 μm (250 μin.)

c

6.3 μm (250 μin.)

d

6.3 μm (250 μin.)

KiSC issued 03, 2016 A
