Draft Control Test Bar
Application

• Use for checking the lift range and floating range of hydraulic

draft control.

NOTE

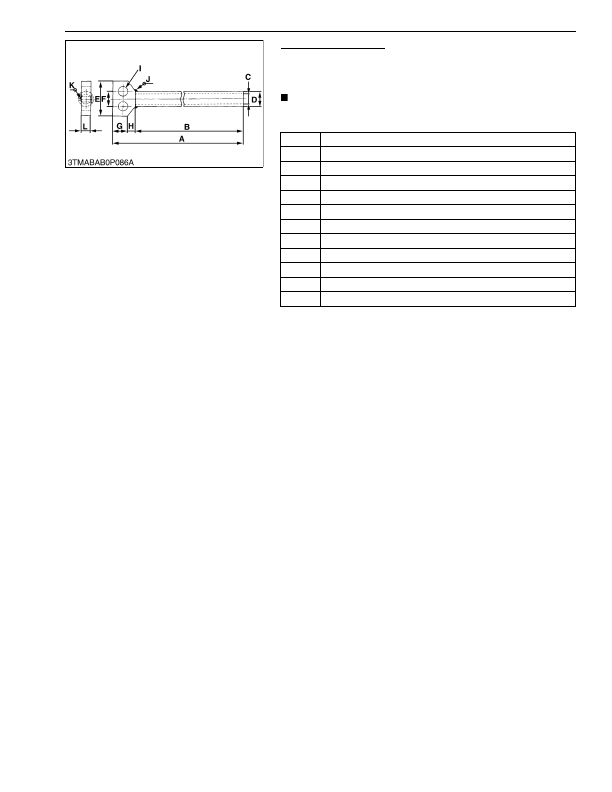

• The special tool is not available, so make it. Refer to the

figure.

9Y1210824GEG0111US0

A

1045 mm (41.14 in.)

B

1000 mm (29.37 in.)

C

20 mm dia. (0.79 in. dia.)

D

30 mm dia. (1.18 in. dia.)

E

90 mm (3.54 in.)

F

30 mm (1.18 in.)

G

30 mm (1.18 in.)

H

15 mm (0.59 in.)

I

20 mm dia. (0.79 in. dia.)

J

Weld all around

K

Weld all around

L

20 mm (0.79 in.)
