Cylinder Safety Valve Setting Pressure Adaptor- Page 98

GENERAL

L3560, L4060, L4760, L5060, L5460, L6060, WSM

G-69

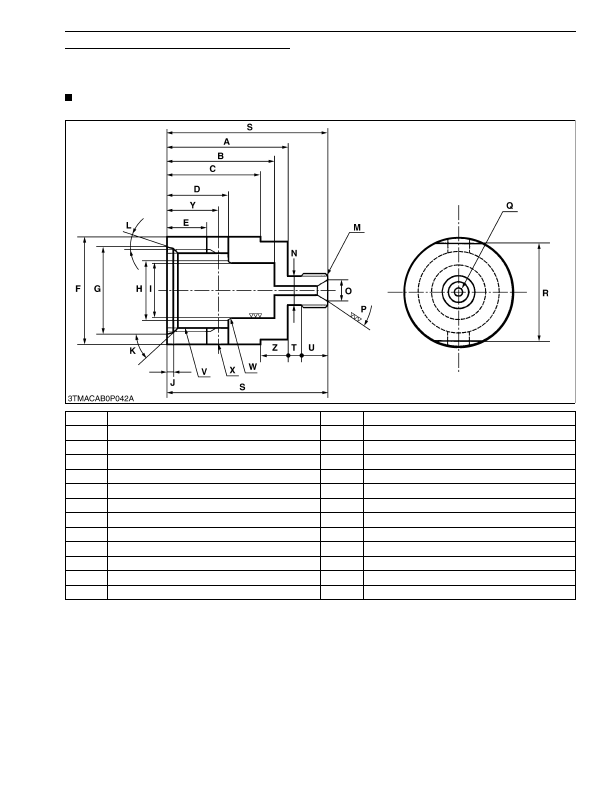

Cylinder Safety Valve Setting Pressure Adaptor
Application

• Use for setting the safety valve to the nozzle tester to measure cracking pressure and check oil tightness of the

safety valves.

NOTE

• This special tool is not provided, so make it referring to the figure.

9Y1210824GEG0133US0

A

45 mm (1.77 in.)

N

10 mm dia. (0.39 in. dia.)

B

40 mm (1.58 in.)

O

7.5 mm dia. (0.3 in. dia.)

C

35 mm (13.8 in.)

P

1.05 rad (60 °)

D

23.0 to 23.3 mm (0.9055 to 0.9713 in.)

Q

3 mm dia. (1.18 in. dia.)

E

16 mm (0.63 in.)

R

36 mm (1.18 in.)

F

40 mm dia. (1.58 in. dia.)

S

60 mm (2.36 in.)

G

32.4 to 32.7 mm dia. (1.2756 to 1.2874 in. dia.)

T

5 mm (0.20 in.)

H

21 mm dia. (0.83 in. dia.)

U

10 mm (0.39 in.)

I

20.00 to 20.05 mm dia. (0.7874 to 0.7894 in. dia.)

V

M30 × P1.5

J

2.50 to 2.59 mm (0.0984 to 0.1097 in.)

W

0.52 rad (30 °)

K

0.79 rad (45 °)

X

8 mm dia. (0.32 in. dia.)

L

0.26 rad (15 °)

Y

19 mm (0.75 in.)

M

M12 × P1.5

Z

10 mm (0.39 in.)

KiSC issued 03, 2016 A
