GENERAL

L3560, L4060, L4760, L5060, L5460, L6060, WSM

G-70

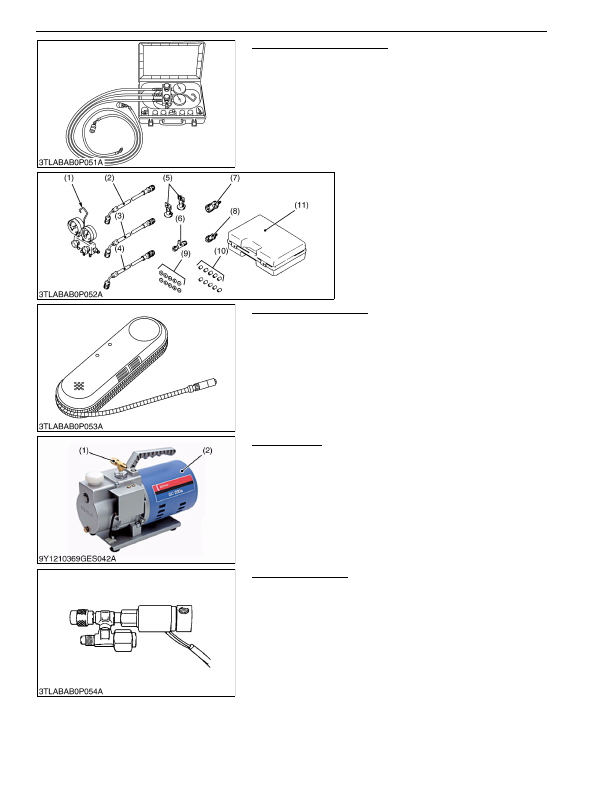

Air-Conditioner Service Tool
Code No.

• DENSO 95048-00063

Application

• Use for charge, test or discharge of the air conditioning system.

WSM000001GEG0042US0

Electric Gas Leak Tester
Code No.

• DENSO 95146-00060

Application

• Use for gas leak test of the air conditioning system.

WSM000001GEG0043US0

Vacuum Pump
Code No.

• DENSO 95046-00130 (AC220V)

• DENSO 95046-00140 (AC240V)

Application

• Use to evacuate the air conditioning system.

WSM000001GEG0044US0

Adaptor (For R134a)
Code No.

• DENSO 95048-10190 (AC220V)

• DENSO 95048-10200 (AC240V)

Application

• Use to evacuate the air conditioning system.

WSM000001GEG0045US0

(1) Manifold Gauge Assembly (95048-10090)

(2) Charging Hose (Red: HI) (95948-10270)

(3) Charging Hose (Blue: LO) (95948-10280)

(4) Charging Hose (Green) (95948-10260)

(5) Can Tap Valve (95048-10150)

(6) T Joint (95048-10160)

(7) Quick Coupler (HI) (95048-10130)

(8) Quick Coupler (LO) (95048-10140)

(9) Service Valve Packing (95906-10310)

(10) Charging Hose Packing (95906-10300)

(11) Tool Case (95949-10610)

(1) Adaptor (For 134a)

(2) Vacuum Pump

KiSC issued 03, 2016 A
