Fuses

Fuse Locations

If any electrical devices are not working, set
the power mode to VEHICLE OFF and check
to see if any applicable fuse is blown.

■

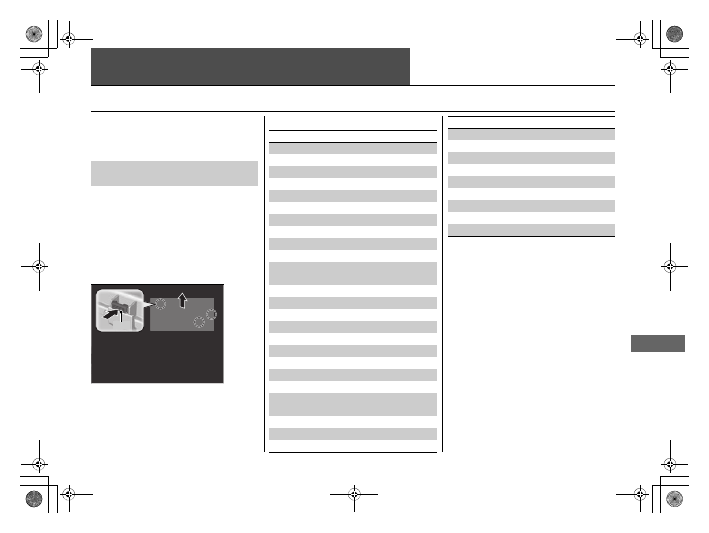

Fuse box A

Located at the rear end of the engine
compartment on the right side. Push the
tabs to open the box.

Fuse locations are shown on the fuse box
cover. Locate the fuse in question by the
fuse number and box cover number.

■

Engine Compartment Fuse
Box

Tab

■

Circuit protected and fuse rating

Circuit Protected

Amps

1

−

−

2

−

−

3

−

−

4

IG1 VB SOL

10 A

5

VSA/ABS

5 A

6

Wiper

30 A

7

IG1 DBW

15 A

8

TCU

15 A

9

IGP1

15 A

10

Sub Fan Motor

30 A

11

Rear Driver’s Side Power

Window

30 A

12

Ignition Coil/Injector

30 A

13

TCU 2

10 A

14

TCU 3

10 A

15

PDM LT2

30 A

16

ST CUT

30 A

17

Shutter Grill

(10 A)

18

Back Up

10 A

19

Stop

*

(10 A)

20

PDM LT1

30 A

21

Rear Passenger’s Side

Power Window

30 A

22

ACM

30 A

23

Hazard

15 A

24

Washer

15 A

25

Main Fan Motor

30 A

26

STRLD

5 A

27

IGPS

5 A

28

Stop

(10 A)

29 Right Headlight Low Beam

10 A

30

Left Headlight Low Beam

10 A

31

Injector

20 A

32

Ignition Coil

15 A

33

FET Module

5 A

Circuit Protected

Amps

* Not available on all models
