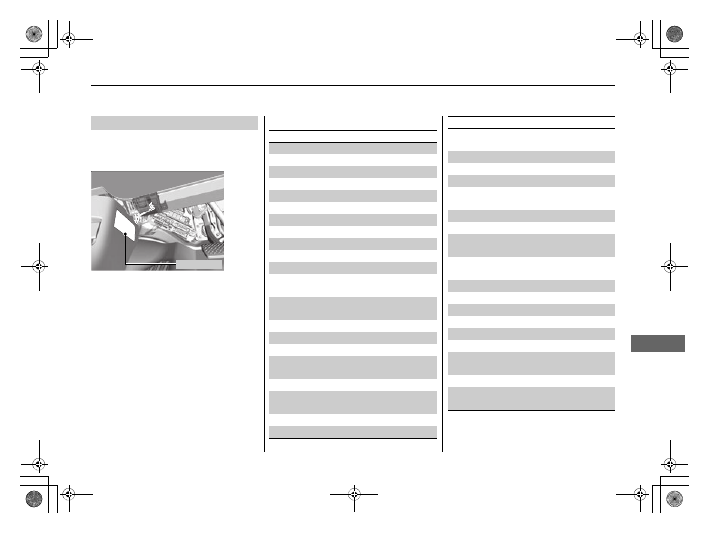

Driver’s Side Interior Fuse Box; Fuse box A; Circuit protected and fuse rating- Page 748

747

uu

Fuses

u

Fuse Locations

Continued

Han

d

lin
g the U

n

expected

Located under the dashboard.

■

Fuse box A

Fuse locations are shown on the label on
the side panel.
Locate the fuse in question by the fuse
number and label number.

■

Driver’s Side Interior Fuse Box

Fuse Label

■

Circuit protected and fuse rating

Circuit Protected

Amps

1

Meter

10 A

2

Starter Motor

(10 A)

3

Option

10 A

4

−

−

5

−

−

6

Moonroof

*

(20 A)

7

−

−

8

Rear Fuse Box

10 A

9

IG1 Front

15 A

10 Rear Passenger’s Door Lock

10 A

11

Driver’s Door Lock

10 A

12

Front Passenger’s Door

Lock

10 A

13

Front Passenger’s Door

Unlock

10 A

14

Driver’s Door Unlock

(10 A)

15

Rear Wiper

10 A

16

SMART

10 A

17

Driver’s Power Seat

Reclining

20 A

18

Heated Steering Wheel

*

(10 A)

19

Front Passenger’s Power

Seat Reclining

20 A

20

SRS

10 A

21

Fuel Pump

20 A

*1:Models with color audio system
*2:Models without color audio system

22

Front Accessory Power

Socket

20 A

23

Left Headlight High Beam

10 A

24 Right Headlight High Beam

10 A

25

Driver’s Power Window

20 A

26

Rear Passenger’s Door

Unlock

10 A

27

ACC

10 A

28

SRS2

10 A

29

Driver’s Power Seat Lumbar

Support

*

(10 A)

30

Front Passenger’s Power

Seat Sliding

20 A

31 Driver’s Power Seat Sliding

20 A

32

Tailgate Lock

*

(10 A)

33

−

−

34

ACG

15 A

35

DRL

10 A

36

A/C

10 A

37

Radio

20 A

*1

15 A

*2

38

Door Lock Main

20 A

39

Front Passenger’s Power

Window

20 A

Circuit Protected

Amps

* Not available on all models
