Fuse box B; Circuit protected and fuse rating- Page 749

748

uu

Fuses

u

Fuse Locations

Han

d

lin
g the U

n

expected

■

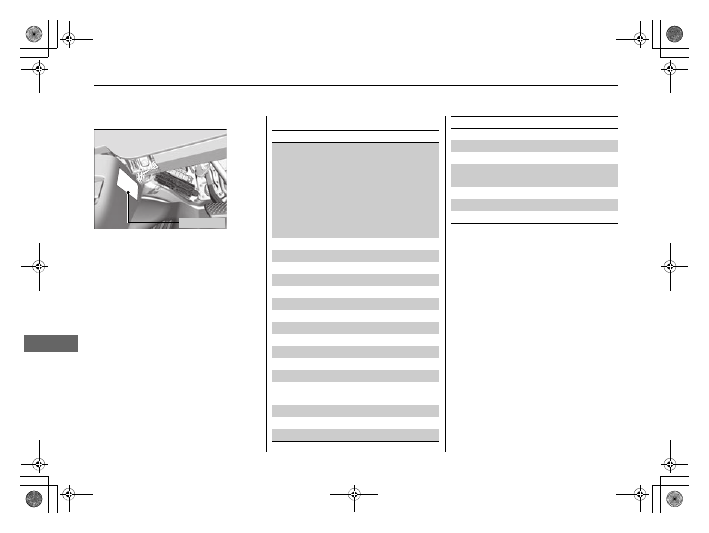

Fuse box B

Fuse Label

■

Circuit protected and fuse rating

Circuit Protected

Amps

1

DC/DC2

(30 A)

DC/DC1

(30 A)

EBB

40 A

Fuse Box Main1

50 A

Fuse Box Main2

50 A

Rear Fuse Box Main1

50 A

Rear Fuse Box Main2

50 A

Vacuum

*

(60 A)

2

IG Main1

30 A

3

AC Outlet

*

(30 A)

4

IG Main2

30 A

5

−

−

6

Rear Blower

30 A

7

Audio Amp2

*

(20 A)

8

Audio Amp1

*

(20 A)

9

Rear Defogger

40 A

10

−

−

11

Heated Windshield

*

(15 A)

12

BMS

5 A

13

Audio Amp3

*

(30 A)

14

Front Passenger’s Power

Seat Lumbar Support

*

(10 A)

15

−

−

16

VSA Motor

40 A

17

Front Blower

40 A

18

−

−

19

Horn

10 A

20

−

−

21

3rd Row Accessory Power

Socket

*

(20 A)

22

Shift By Wire

10 A

23

VBUM

10 A

24

VSA

40 A

Circuit Protected

Amps

* Not available on all models
