6-3. Do-it-yourself maintenance

6

Mai
nte

na

nc

e a

nd

 c

are

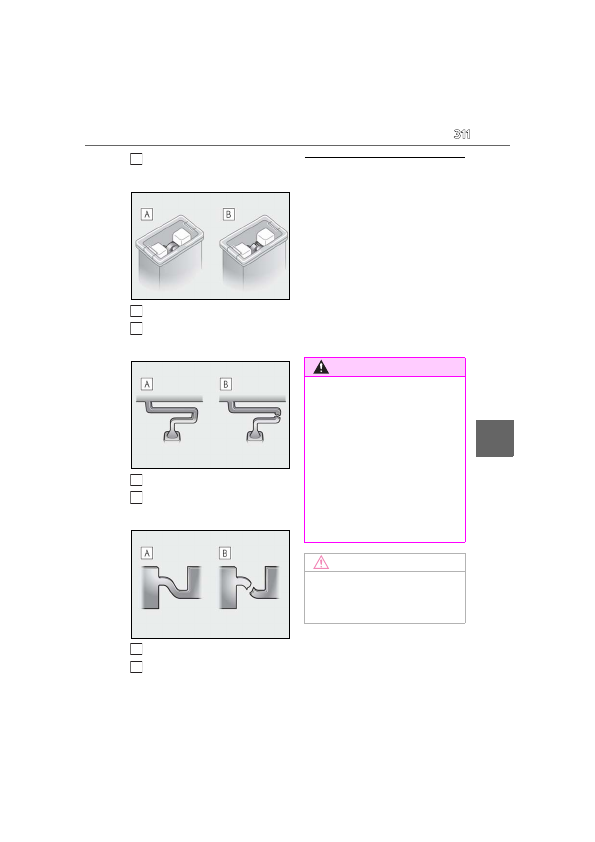

Blown fuse



Type B

Normal fuse
Blown fuse



Type C

Normal fuse
Blown fuse



Type D

Normal fuse
Blown fuse

■

After a fuse is replaced

●

If the lights do not turn on even after the

fuse has been replaced, a bulb may need

replacement.

●

If the replaced fuse blows again, have the

vehicle inspected by your Lexus dealer.

■

If there is an overload in a circuit

The fuses are designed to blow, protecting

the wiring harness from damage.

■

When replacing light bulbs

Lexus recommends that you use genuine

Lexus products designed for this vehicle.

Because certain bulbs are connected to cir-

cuits designed to prevent overload,

non-genuine parts or parts not designed for

this vehicle may be unusable.

B

A

B

A

B

A

B

WARNING

■

To prevent system breakdowns and

vehicle fire

Observe the following precautions.

Failure to do so may cause damage to

the vehicle, and possibly a fire or injury.

●

Never use a fuse of a higher amperage

rating than that indicated, or use any

other object in place of a fuse.

●

Always use a genuine Lexus fuse or

equivalent.

Never replace a fuse with a wire, even

as a temporary fix.

●

Do not modify the fuses or fuse boxes.

NOTICE

■

Before replacing fuses

Have the cause of electrical overload

determined and repaired by your Lexus

dealer as soon as possible.
