Refueling- Page 122

E139202

A

Note:

When you insert the correct size fuel

pump nozzle a spring loaded inhibitor will
open. This helps to avoid refueling with the
incorrect fuel.

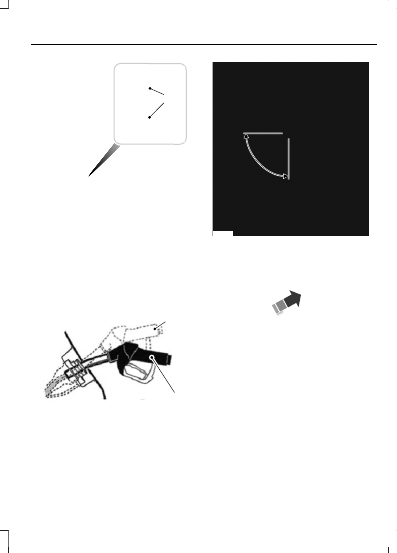

3. Insert the fuel pump nozzle up to the

first notch on the nozzle A.  Keep it
resting on the cover of the fuel tank
filler pipe opening.

E139203

A

B

4. Hold the fuel pump nozzle in position

B during refueling.  Holding the fuel
pump nozzle in position A may affect
the flow of fuel and shut off the fuel
pump nozzle before the fuel tank is full.

E162792

5. Operate the fuel pump nozzle within

the area shown.

E154765

6. Slightly raise the fuel pump nozzle and

remove it slowly.

7.

Close the fuel tank filler door.

119

Transit (TTH) Canada/United States of America, enUSA, Edition date: 03/2014, Third Printing

Fuel and Refueling
