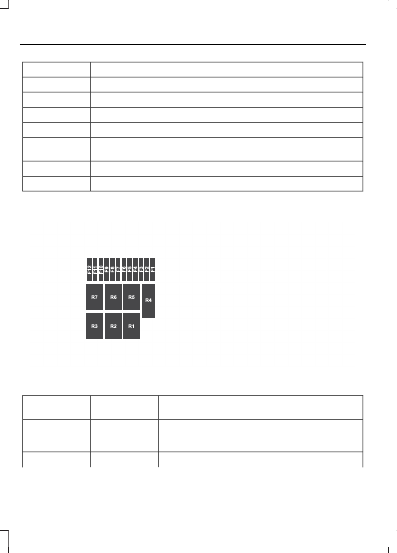

Pre-fuse Box- Page 197

Circuits switched

Relay

Horn.

R7

Trailer tow back-up lamp.

R8

Front blower motor.

R9

Rear blower motor.

R10

Heated rear window.

R11

Heated exterior mirrors.

Not used.

R12

Modified vehicle connections.

R13

Pre-fuse Box

E191034

Circuits protected

Fusible link

rating

Fusible link

Engine compartment fuse box.

470A

C

Starter motor.
Alternator.

Passenger compartment fuse panel.

100A

D

194

Transit (TTH) Canada/United States of America, enUSA, Edition date: 03/2014, Third Printing

Fuses
