Vehicle Jack Storage

The vehicle jack is under the passenger
seat.  The jack handle and lug wrench are
located in a storage compartment in the
front right-hand side stepwell.

Note:

The vehicle jack is in the load space

area on vehicles with rear climate control.

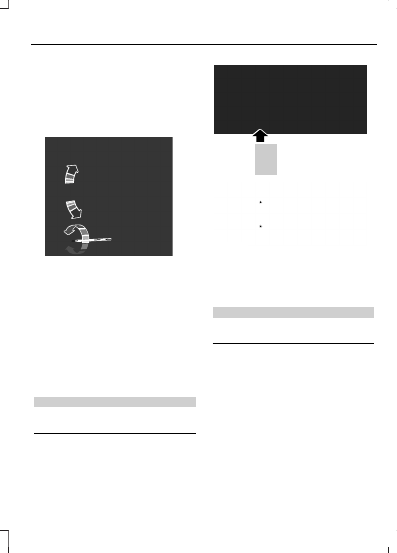

E70959

1.

Assemble the jack handle.

2. Insert the jack handle onto the release

valve and rotate clockwise until you
feel a strong resistance.

3. Insert the jack handle into the pump

and use a pumping action to raise your
vehicle.

4. Insert the jack handle into the release

valve and rotate counterclockwise to
lower your vehicle.

Front Jacking Points

WARNING

You must use the specified jacking
points.

Note:

If your vehicle has rear air

conditioning make sure the vehicle jack does
not come in contact with the air conditioning
lines.

E171405

Position the head of the vehicle jack under
the protrusions at the rear of front
sub-frame.

Rear Jacking Points

WARNING

You must use the specified jacking
points.
