Cadillac ATS/ATS-V Owner Manual (GMNA-Localizing-U.S./Canada/Mexico-

12460272) - 2019 - crc - 5/8/18

162

CLIMATE CONTROLS

Dual Automatic Climate Control System (Uplevel)

The climate control buttons on the center stack and on the climate control
display are used to adjust the heating, cooling, and ventilation.

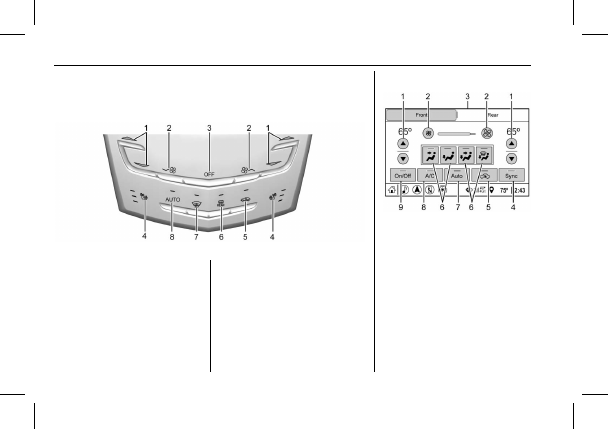

Center Stack Climate Controls

1. Driver and Passenger

Temperature Controls

2. Fan Control

3. OFF (Fan)

4. Driver and Passenger Heated

Seats (If Equipped)

5. Recirculation

6. Rear Window Defogger

7. Defrost

8. AUTO (Automatic Operation)

Climate Control Display

1. Driver and Passenger

Temperature Controls

2. Fan Controls

3. REAR (Rear Climate Control

Display, If Equipped)

4. Sync (Synchronized Driver and

Passenger Temperature)

5. Recirculation

6. Air Delivery Mode Control

7. Auto (Automatic Operation)

8. A/C (Air Conditioning)

9. On/Off
