Cadillac ATS/ATS-V Owner Manual (GMNA-Localizing-U.S./Canada/Mexico-

12460272) - 2019 - crc - 5/8/18

SEATS AND RESTRAINTS

53

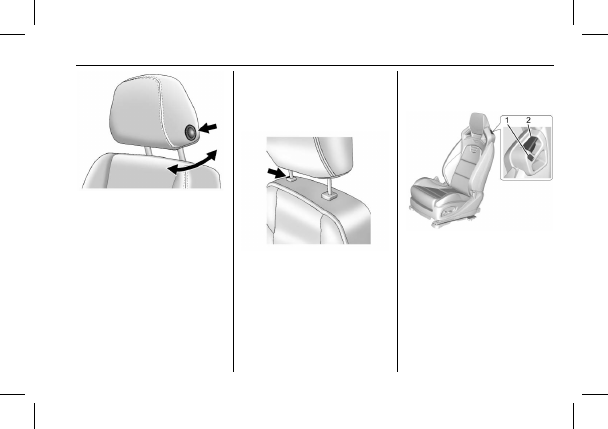

To adjust the head restraint forward
and rearward, press the button located
on the side facing of the head
restraint and move it forward or
rearward until the desired locking
position is reached. Try to move the
head restraint after the button is
released to make sure that it is locked
in place.

The front seat outboard head
restraints are not removable.

Rear Seats

The vehicle's rear seats have
adjustable head restraints in the
outboard seating positions.

The height of the head restraint can
be adjusted. Pull the head restraint up
to raise it. Try to move the head
restraint to make sure that it is locked
in place.

To lower the head restraint, press the
button, located on the top of the
seatback, and push the head restraint
down. Try to move the head restraint
after the button is released to make
sure that it is locked in place.

Rear outboard head restraints are not
removable.

Front Seats

Easy Entry Seat

High Performance Seat

1. Seat Adjustment Switch
2. Folding Seatback Handle

If equipped, the front seats can be
moved out of the way to make it
easier to get in and out of the
rear seat.

To fold the seatback, lift the
handle (2) on top of the seatback. The
seatback will fold forward.
