VEHICLE CARE

277

Fuses

Usage

53

Coolant pump

55

56

Transmission control
module

64

Adaptive headlamp
leveling

65

Left HID headlamp

66

Right HID headlamp

67

Left/Right high-beam
headlamp

68

Headlamp leveling
motor

69

Horn

71

Cooling fan

72

Starter 2

73

Brake vacuum pump

74

Starter 1

75

Air conditioning
clutch

76

Relays

Usage

8

Headlamp washer

23

Wiper control

24

Wiper speed

25

Engine control
module

26

44

46

Rear washer

47

Front washer

54

Coolant pump

57

Low-beam headlamp
relay

58

High-beam headlamp

59

Run/Crank

60

Starter 2

61

Vacuum pump

62

Starter 1

63

Air conditioning
control

70

Horn

Instrument Panel Fuse
Block

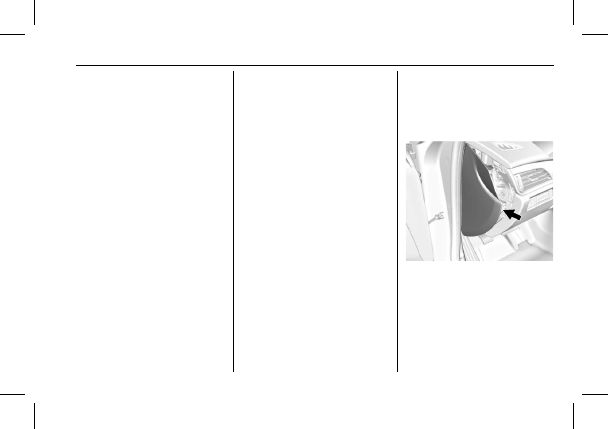

The instrument panel fuse block is in
the end of the driver side of the
instrument panel.

To access the fuses, remove the end
panel by gently prying with a plastic
tool near each clip, beginning at the
point shown.
