CLUTCH

L3560, L4060, L4760, L5060, L5460, L6060, WSM

2-S27

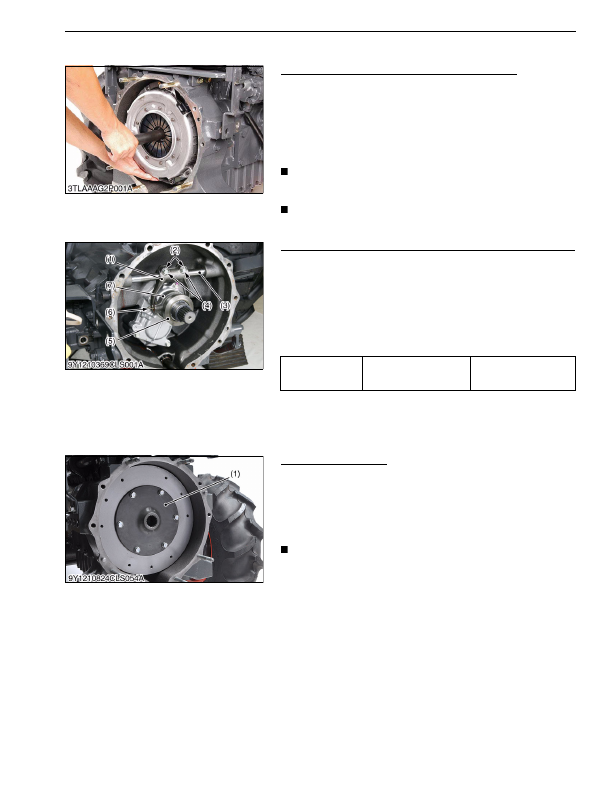

6. DISASSEMBLING AND ASSEMBLING

Clutch Assembly (Manual Transmission and GST)

1. Remove the clutch from the flywheel.

(When reassembling)

• Direct  the  shorter  end  of  the  clutch  disc  boss  toward  the

flywheel.

• Apply molybdenum disulphide (Three Bond 1901 or equivalent)

to the splines of clutch disc boss.

• Install the pressure plate, noting the position of straight pins.

IMPORTANT

• Align the center of disc and flywheel by inserting the clutch

center tool. (See page G-63.)
NOTE

• Do not allow grease and oil on the clutch disc facing.

9Y1210824CLS0026US0

Release Hub and Clutch Lever (Manual Transmission and GST)

1. Draw out the clutch release hub (7) and the release bearing (5)

as a unit.

2. Remove the release fork setting screws (4) and fork keys (2).

3. Draw out the clutch lever (3) to remove the release fork (1).

(When reassembling)

• Make sure the direction of the release fork (1) is correct.

• Inject grease to the release hub (7).

• Be sure to set the snap pins (6).

9Y1210824CLS0027US0

Clutch Coupling (HST)

1. Remove the clutch coupling mounting screws.

(When reassembling)

• Mount the clutch coupling so that the short boss side faces to

the flywheel.

• Apply molybdenum disulphide (Three Bond 1901 or equivalent)

to the splines of clutch coupling boss.

IMPORTANT

• Align the center of disc and flywheel by inserting the clutch

center tool.

9Y1210824CLS0028US0

Tightening torque

Release fork setting screws

24 to 27 N·m

2.4 to 2.8 kgf·m

18 to 20 lbf·ft

(1) Release Fork

(2) Fork Key

(3) Clutch Lever

(4) Setting Screw

(5) Release Bearing

(6) Snap Pin

(7) Release Hub
