ELECTRICAL SYSTEM

L3560, L4060, L4760, L5060, L5460, L6060, WSM

9-S68

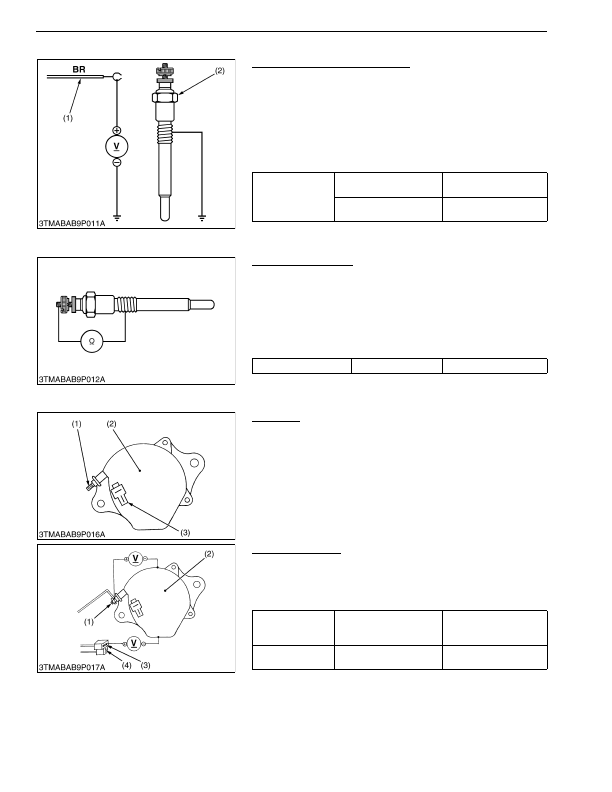

(7)  Glow Control System

Glow Plug Lead Terminal Voltage

1. Disconnect  the  wiring  lead  (1)  from  the  glow  plug  (2)  after

turning the main switch off.

2. Turn  the  main  switch  key  to  the

"PREHEAT"

  position,  and

measure the voltage between the lead terminal and the chassis.

3. Turn  the  main  switch  key  to  the

"START"

  position,  and

measure the voltage between the lead terminal and the chassis.

4. If the voltage at either position differs from the battery voltage,

the wiring harness or main switch is faulty.

9Y1210824ELS0079US0

Glow Plug Continuity

1. Disconnect the lead from the glow plugs.

2. Measure the resistance between the glow plug terminal and the

chassis.

3. If 0 ohm is indicated, the screw at the tip of the glow plug and

the housing are short-circuited.

4. If  the  factory  specification  is  not  indicated,  the  glow  plug  is

faulty.

9Y1210824ELS0080US0

[7] CHARGING SYSTEM

Alternator

1. Disconnect the

2P

 connector (3) from alternator after turning the

main switch

"OFF"

.

2. Perform the following checkings.

9Y1210824ELS0081US0

Connector Voltage

1. Turn the main switch

"OFF"

. Measure the voltage between the

B

 terminal (1) and the chassis.

2. Turn the main switch

"ON"

. Measure the voltage between the

IG

 terminal (3) and the chassis.

9Y1210824ELS0082US0

Voltage

(Lead terminal –

Chassis

Main switch key at

"PREHEAT"

Approx. battery voltage

Main switch key at

"START"

Approx. battery voltage

(1) Wiring Lead (Positive)

(2) Glow Plug

Glow plug resistance

Factory specification

Approx. 0.9 Ω

(1)

B

 Terminal

(2) Alternator

(3)

2P

 Connector

Voltage

(Main switch at

OFF

)

B

 terminal – Chassis

Approx. battery voltage

Voltage

(Main switch at

ON

)

IG

 terminal – Chassis

Approx. battery voltage

(1)

B

 Terminal

(2) Alternator

(3)

IG

 Terminal

(4)

L

 Terminal

KiSC issued 03, 2016 A
