TRANSMISSION

L3560, L4060, L4760, L5060, L5460, L6060, WSM

3-S129

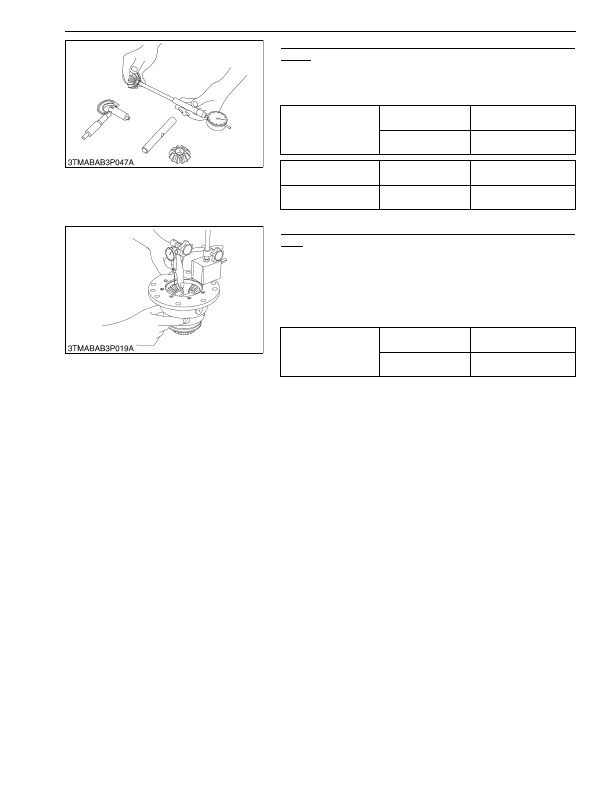

Clearance between Differential Pinion Shaft and Differential
Pinion

1. Measure the differential pinion shaft O.D.

2. Measure the differential pinion I.D. and calculate the clearance.

3. If the clearance exceed the allowable limit, replace them.

9Y1210824TRS0143US0

Backlash between Differential Pinion and Differential Side
Gear

1. Set a dial indicator (lever type) on the tooth of the differential

pinion.

2. Hold the differential side gear and move the differential pinion to

measure the backlash.

3. If  the  measurement  is  not  within  the  factory  specifications,

adjust with the differential side gear washer.

(Reference)

• Thickness of differential side gear washer

1.5 mm (0.059 in.)

1.6 mm (0.063 in.)

1.7 mm (0.067 in.)

9Y1210824TRS0144US0

[2]  GLIDE SHIFT TRANSMISSION (GST)

(1)  Bearing, Gear and Shaft

Refer to 3-S123.

9Y1210824TRS0145US0

(2) Synchronizer Gear

Refer to 3-S124.

9Y1210824TRS0146US0

(3) PTO Clutch

Refer to 3-S125.

9Y1210824TRS0147US0

(4) Differential Gears

Refer to 3-S126.

9Y1210824TRS0148US0

Clearance between

differential pinion shaft

and differential pinion

Factory specification

0.060 to 0.102 mm

0.0024 to 0.00401 in.

Allowable limit

0.25 mm

0.0098 in.

Differential pinion shaft

O.D.

Factory specification

19.959 to 19.980 mm

0.78579 to 0.78661 in.

Differential pinion I.D.

Factory specification

20.040 to 20.061 mm

0.78898 to 0.78980 in.

Backlash between

differential pinion and

differential side gear

Factory specification

0.15 to 0.30 mm

0.0059 to 0.011 in.

Allowable limit

0.4 mm

0.02 in.
