STEERING

L3560, L4060, L4760, L5060, L5460, L6060, WSM

7-M2

2. HYDRAULIC CIRCUIT

When  the  engine  starts,  the  hydraulic  pump  (8)

pressure-feeds the oil, drawn from the transmission case

(7) through the oil filter (6), to the steering controller (3).

The oil which has entered steering controller (3) is

directed to control valve (10).

As  the steering  wheel is turned,  control  valve  (10)

operates and the oil passes through gerotor (1) and into

steering  cylinder  (2).  The  cylinder  rod  then  moves  to

control the directional movement of the front wheels.

Return oil from steering cylinder (2) passes through

control valve (10) is sent to the PTO clutch valve, HST,

GST valve, etc..

When the engine is not operating, and the steering

wheel  is  turned,  gerotor  (1)  rotates  to  supply  oil  to

steering cylinder (2). Thus the machine can be steered

manually.

9Y1210824STM0002US0

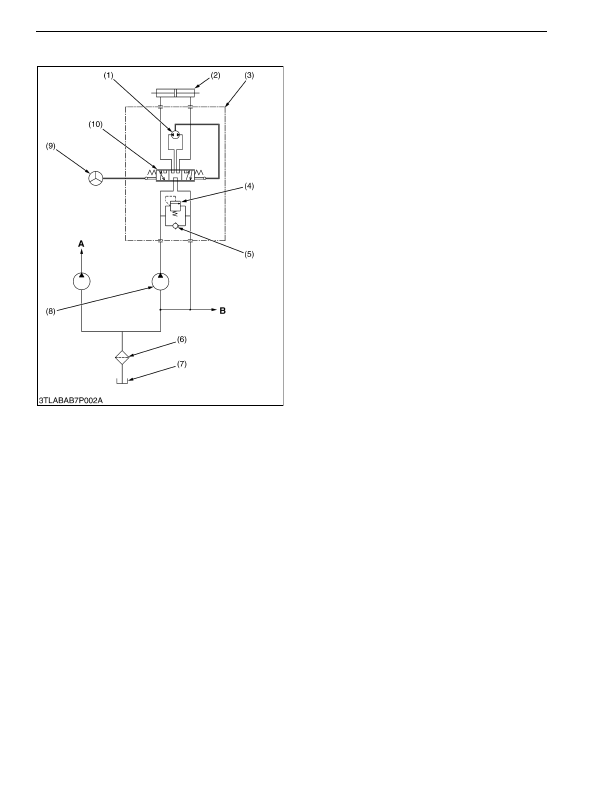

(1) Gerotor

(2) Steering Cylinder

(3) Steering Controller

(4) Relief Valve

(5) Check Valve

(6) Oil Filter

(7) Transmission Case

(8) Hydraulic Pump

(9) Steering Wheel

(10) Control Valve

A: To Three Point Hydraulic

System and Others

B: To PTO Clutch Valve, HST,

GST Valve, etc.
