HYDRAULIC SYSTEM

L3560, L4060, L4760, L5060, L5460, L6060, WSM

8-S24

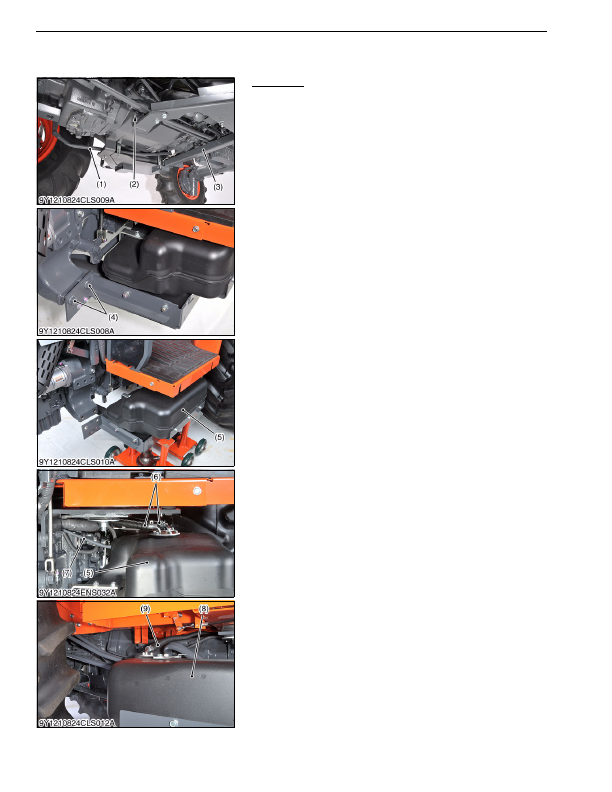

[5]  FRONT LOADER CONTROL VALVE AND RELIEF VALVE

(1)  Removing Front Loader Control Valve Assembly

Fuel Tanks

1. Remove the left step.

2. Remove the fuel hose cover (3).

3. Remove the brake rod L.H. (1).

4. Place  the  disassembling  stands  under  the  right  and  left  fuel

tanks (5), (8).

5. Remove the front (4) and rear support mounting screws (2) of

the right and left fuel tanks (5), (8).

6. Lower  the  fuel  tanks  (5),  (8)  together  with  the  disassembling

stands.

7. Disconnect the fuel hoses (6), overflow hose (7) and fuel level

sensor connector from the fuel tank L.H. (5).

8. Disconnect the fuel hose (9) from the fuel tank R.H. (8).

9Y1210824CLS0008US0

(1) Brake Rod L.H.

(2) Rear Support Mounting Screw

(3) Fuel Hose Cover

(4) Front Support Mounting Screw

(5) Fuel Tank L.H.

(6) Fuel Hose

(7) Overflow Hose

(8) Fuel Tank R.H.

(9) Fuel Hose

KiSC issued 03, 2016 A
