BRAKES

L3560, L4060, L4760, L5060, L5460, L6060, WSM

5-S15

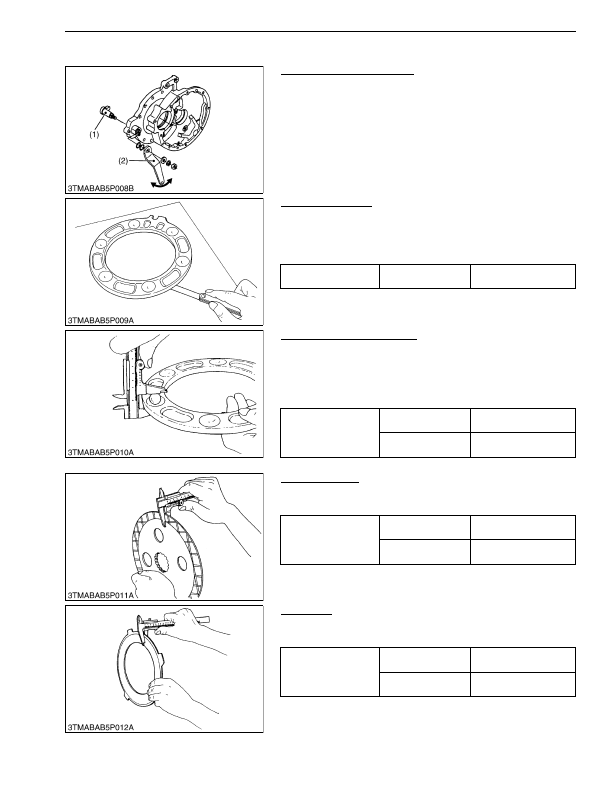

6. SERVICING

Brake Cam Lever Movement

1. Assemble the brake cam (1) and brake cam lever (2).

2. Move the brake cam lever by hand to check the movement.

3. If the movement is heavy, refine the brake cam lever or brake

case with sandpaper.

9Y1210824BRS0012US0

Cam Plate Flatness

1. Place the cam plate on the surface plate.

2. Measure the flatness of cam plate with a feeler gauge at four

points on a diagonal line.

3. If the measurement exceed the allowable limit, replace it.

9Y1210824BRS0013US0

Height of Cam Plate and Ball

1. Measure the dimension of the cam plate with the ball installed.

2. If the measurement is less than the allowable limit, replace the

cam plate and balls.

3. Inspect  the  ball  holes  of  cam  plate  for  uneven  wear.  If  the

uneven wear is found, replace it.

9Y1210824BRS0014US0

Brake Disc Wear

1. Measure the brake disc thickness with vernier calipers.

2. If the measurement is less than the allowable limit, replace it.

9Y1210824BRS0015US0

Plate Wear

1. Measure the plate thickness with vernier calipers.

2. If the measurement is less than the allowable limit, replace it.

9Y1210824BRS0016US0

(1) Brake Cam

(2) Brake Cam Lever

Cam plate flatness

Allowable limit

0.30 mm

0.012 in.

Height of cam plate and

ball

Factory specification

20.9 to 21.1 mm

0.823 to 0.830 in.

Allowable limit

20.5 mm

0.807 in.

Brake disc thickness

Factory specification

4.60 to 4.80 mm

0.181 to 0.188 in.

Allowable limit

4.20 mm

0.165 in.

Plate thickness

Factory specification

2.54 to 2.66 mm

0.100 to 0.104 in.

Allowable limit

2.1 mm

0.083 in.

KiSC issued 03, 2016 A
