6. SERVICING; [1] LIFT ARM; Lift Arm Support Bushing- Page 582

HYDRAULIC SYSTEM

L3560, L4060, L4760, L5060, L5460, L6060, WSM

8-S29

6. SERVICING

[1] LIFT ARM

Lift Arm Support Bushing

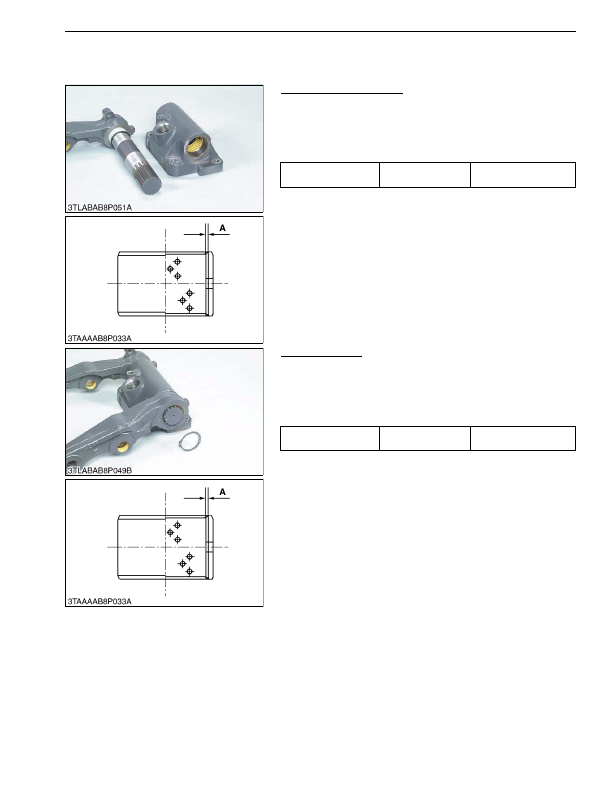

1. Visually inspect the DX bushings for signs of wear or damage.

(The DX bushing tends to show concentrated wear.)

2. If the DX bushing is worn beyond the alloy portion

"A"

, replace

it.

(Reference)

9Y1210824HYS0035US0

Lift Arm Bushing

1. Visually inspect the DX bushings for signs of wear or damage.

(The DX bushing tends to show concentrated wear.)

2. If the DX bushing is worn beyond the alloy portion

"A"

, replace

it.

(Reference)

9Y1210824HYS0036US0

Lift arm support bushing

Alloy thickness

"A"

0.57 mm

0.022 in.

Lift arm bushing

Alloy thickness

"A"

0.57 mm

0.022 in.
