HYDRAULIC SYSTEM

L3560, L4060, L4760, L5060, L5460, L6060, WSM

8-M23

7. OTHER

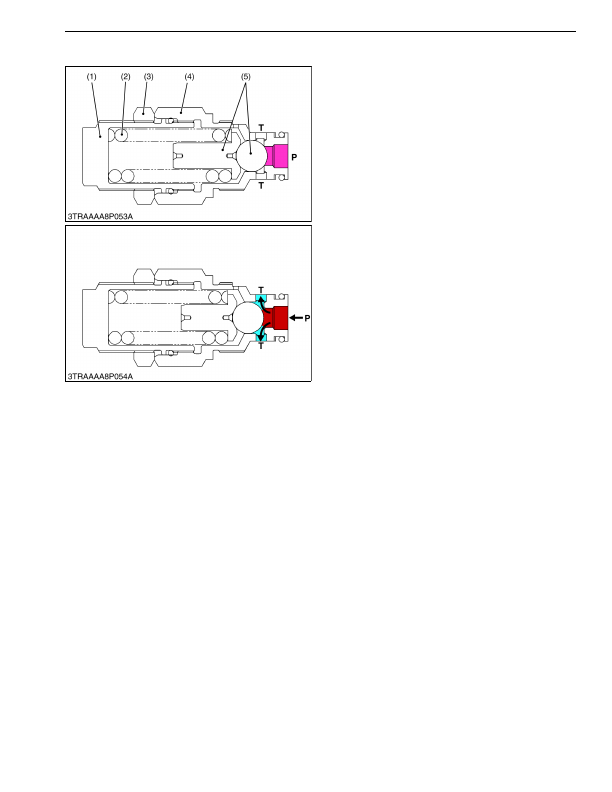

The cylinder safety valve is located on the hydraulic

cylinder  of  the  three  point  hydraulic  system.  These

tractors use a direct acting relief valve, which is suitable

for low volume and less frequent operations.This valve

has a fast response, makes it ideal for relieving shock

pressure  caused  by  heavy  implement  bounce  and

thereby reducing the possibility of damage to three point

hydraulic system components.If pressure in the cylinder

becomes too great, oil pressure forces the valve (5) off

the seat of valve body (4), compressing the springs (2)

and allows oil to flow to the transmission case through

the

T

 port.

9Y1210824HYM0028US0

(1) Adjusting Plug

(2) Spring

(3) Lock Nut

(4) Valve Body

(5) Valve

P : P Port (From Hydraulic

Cylinder)

T : T Port (To Transmission

Case)

KiSC issued 03, 2016 A
