ENGINE

L3560, L4060, L4760, L5060, L5460, L6060, WSM

1-S19

DPF Muffler

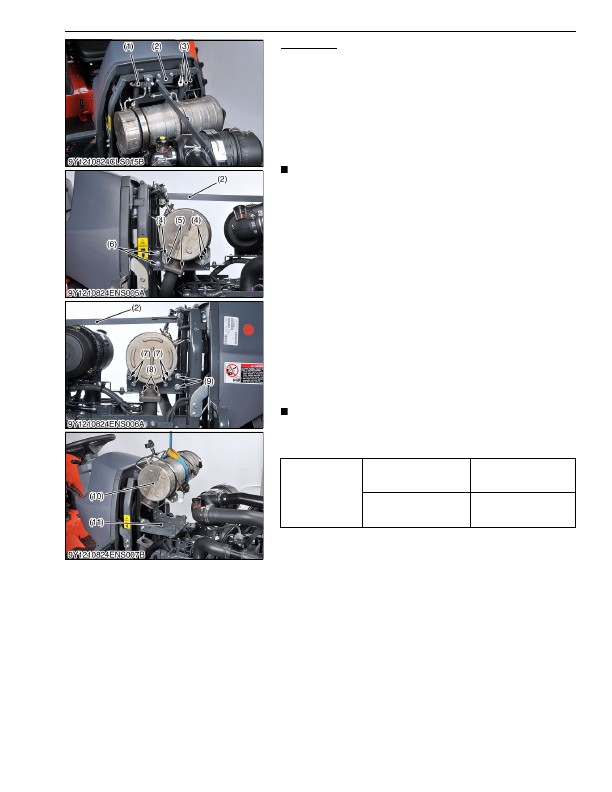

1. Remove the damper support (2).

2. Disconnect the differential pressure connector (1) and DPF

temperature sensor connectors (3).

3. Remove the muffler pipe mounting screws (5).

4. Remove the DPF mounting screws R.H. (4).

5. Remove the exhaust flange mounting screws (8).

6. Remove the DPF mounting screws L.H. (7).

7. Remove the DPF muffler (10) using hoist.

(When reassembling)

IMPORTANT

• When mounting the DPF muffler (10) to the bracket (11),

make sure to follow the procedures below.

1. Loosen the bracket mounting screws between the bracket

(11) and the exhaust flange.

2. Loosen the bracket mounting screws (6) and (9) until the

bracket (11) can move.

3. Mount the DPF muffler to the bracket (11) and temporarily

tighten the screws (4), (5), (7) and (8).

4. Tighten evenly and properly the exhaust flange mounting

screws (8).

5. Tighten evenly and properly the bracket mounting screws

between the bracket (11) and the exhaust flange.

6. Tighten evenly and properly the bracket mounting screws

(6) and (9).

7. Tighten evenly and properly the DPF muffler mounting

screws R.H. (4) and then the DPF muffler mounting screws
L.H. (7).

8. Tighten evenly and properly the muffler pipe mounting

screws (5).
NOTE

• Record the tractor serial number and the engine serial

number.

• Record the DPF muffler serial number.

9Y1210824ENS0015US0

Tightening torque

Muffler pipe mounting

screw

31 to 37 N·m

3.2 to 3.7 kgf·m

23 to 27 lbf·ft

Exhaust flange mounting

screw

31 to 37 N·m

3.2 to 3.7 kgf·m

23 to 27 lbf·ft

(1) Differential Pressure Connector

(2) Damper Support

(3) DPF Temperature Sensor

Connector

(4) DPF Mounting Screw R.H.

(5) Muffler Pipe Mounting Screw

(6) Bracket Mounting Screw R.H.

(7) DPF Mounting Screw L.H.

(8) Exhaust Flange Mounting Screw

(9) Bracket Mounting Screw L.H.

(10) DPF Muffler

(11) Bracket

KiSC issued 03, 2016 A
