ENGINE

L3560, L4060, L4760, L5060, L5460, L6060, WSM

1-S23

Judgment of Reuse of Filter Comp (DPF) After Cleaning by
Cleaning Contractor

IMPORTANT

• After the cleaning contractor has cleaned the filter comp

DPF (2), they should measure the quantity of remaining ash
in the following procedure, and evaluate the reusability.

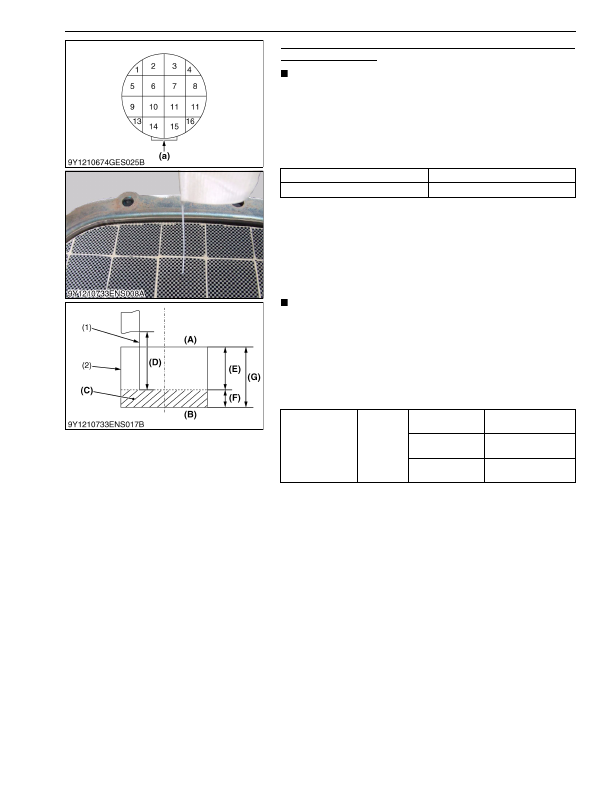

1. After  having  cleaned  the  filter  comp  (DPF)  (2),  measure  the

actual  cell  depth

(E)

  with  a  pin  gauge  (1)  in  the  each  block

shown in the  figure. One  cell  (The measurement point  is  not

specified) is measured in each block.

2. If the actual cell depth

(E)

 is less than the allowable limit, the

DPF (2) cannot be reused.

If the DPF (2) is judged as non-reusable, report the result of the

judgment to the customer that requested the filter cleaning via

the service dealer, and replace the DPF (2) with a new one.

(Reference)

Actual  Cell  Depth

(E)

  =  Cell  Depth

(G)

  −  Accumulated  Ash

Depth

(F)

NOTE

• Select a metal pin gauge (1) having a wire size slightly

thinner than the cell width (0.60 to 0.80 mm dia., 0.024 to
0.031 in. dia.).

• When the pin gauge (1) is inserted into the cell hole, insert

it by lightly tapping on the gage end with a finger tip.

• If the pin gauge is forcibly pushed in, the pin pierces

through the accumulated ash and it cannot be measured
accurately. So be careful not to push the pin forcibly.

9Y1210824ENS0126US0

Model

Measurement total

All model

16 blocks

Actual Cell Depth

(Average of all

measurement

blocks)

Allowable

limit

D1803-CR-E4

85 mm

3.3 in.

V2403-CR-E4

102 mm

4.02 in.

V2403-CR-TE4

119 mm

4.68 in.

(1) Pin Gauge (0.60 to 0.80 mm dia.,

0.024 to 0.031 in. dia.)

(2) DPF

(a) Serial Number

(A) Exhaust Inlet Side
(B) Exhaust Outlet Side
(C) Accumulated Ash
(D) 150 mm (5.91 in.)
(E) Actual Cell Depth
(F) Accumulated Ash Depth
(G) Cell Depth
