L3560,L4060,L4760,L5060,L5460,L6060
9 ELECTRICAL SYSTEM
background image

TRANSMISSION

L3560, L4060, L4760, L5060, L5460, L6060, WSM

3-S39

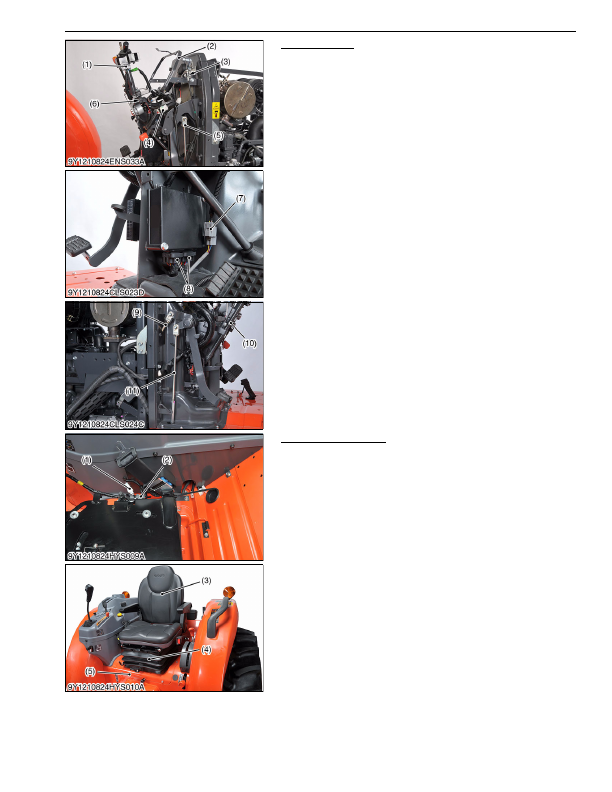

Wiring Harness

1. Disconnect the multi function combination switch connector (1),

side working light connector (6) and main switch connector (4).

2. Disconnect the shuttle switch connector (7) and the foot throttle

wire (3). (ManualTransmission and GST only)

3. Remove the meter panel support (2) and brake pedal rod R.H.

(5).

4. Remove the main ECU connectors (8).

5. Remove the shuttle link (10) and clutch pedal rod (9). (Manual

transmission and GST only)

6. Remove the brake pedal rod L.H. (11) and both sides of support

plates (11).

9Y1210824TRS0002US0

Seat and Seat Bracket

1. Disconnect  the  seat  switch  connector  (1)  and  seat  tilt  switch

connector (2).

2. Remove the seat (3).

3. Remove the seat suspension (4) together with seat bracket (5).

9Y1210824HYS0018US0

(1) Multi Function Combination Switch

Connector

(2) Meter Panel Support

(3) Foot Throttle Wire

(4) Main Switch Connector

(5) Brake Pedal Rod R.H.

(6) Side Working Light Connector

(7) Shuttle Switch Connector

(8) Main ECU Connector

(9) Clutch Pedal Rod

(10) Shuttle Link

(11) Brake Pedal Rod L.H.

(1) Seat Switch Connector

(2) Seat Tilt Switch Connector

(3) Seat

(4) Seat Suspension

(5) Seat Bracket

KiSC issued 03, 2016 A
