TRANSMISSION

L3560, L4060, L4760, L5060, L5460, L6060, WSM

3-S41

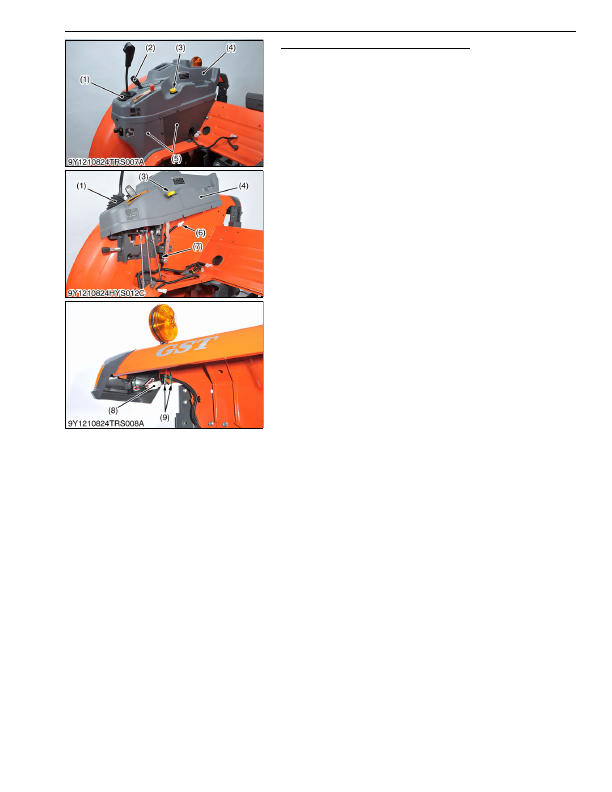

PTO Switch Connector and Lever Guide

1. Remove the position control lever grip (2) and covers (5).

2. Disconnect the PTO switch connector (6) and accelerator

sensor connector (7).

3. Disconnect the boots (1) from lever guide (4) then remove the

lever guide (4).

4. Disconnect the left and right hazard light connector (9) and rear

combination light connector (8).

9Y1210824TRS0051US0

(1) Boots

(2) Position Control Lever Grip

(3) PTO Switch

(4) Lever Guide

(5) Cover

(6) PTO Switch Connector

(7) Accelerator Sensor Connector

(8) Rear Combination Light Switch

(9) Hazard Light Connector
