ENGINE

L3560, L4060, L4760, L5060, L5460, L6060, WSM

1-S44

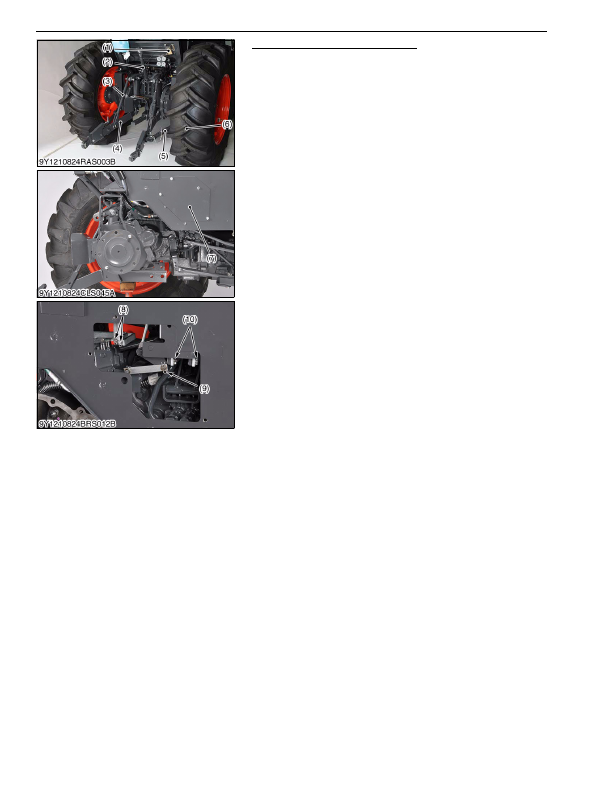

Linkage and Remote Control Valve

1. Remove the remote control valve support (1) together with the

couplers. (If equipped.)

2. Remove the top link (2), right and left lift rods (3), lower links (4)

and stabilizers (5).

3. Remove the rear tire R.H. (6) and fender plate (7).

4. Disconnect the remote control valve linkage ß pins (8) to

release the links. (If equipped.)

5. Disconnect the position lever linkage ß pin (9) to release the

link.

6. Disconnect the front loader control linkage ß pins (10) to release

the links.

9Y1210824CLS0021US0

(1) Remote Control Valve

(2) Top Link

(3) Lift Rod

(4) Lower Link

(5) Stabilizer

(6) Rear Tire R.H.

(7) Fender Plate

(8) ß Pin

(9) ß Pin

(10) ß Pin

KiSC issued 03, 2016 A
