Oil Clearance between Crankshaft Journal and Crankshaft
Bearing 2

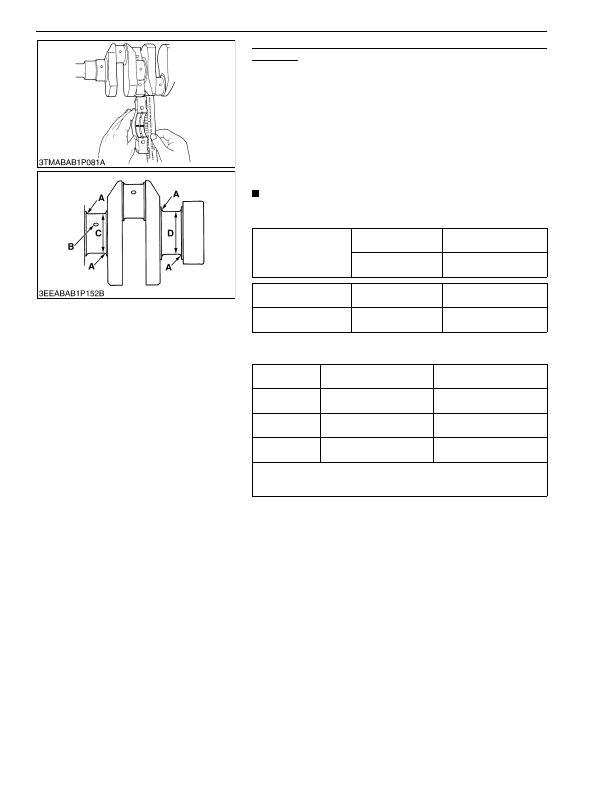

1. Put a strip of plastigauge on the center of the journal.

2. Install the bearing case and tighten the baring case screws 1 to

the specified torque, and remove the bearing case again.

3. Measure the width that it becomes flat with the scale to get the

oil clearance.

4. If the oil clearance is more than the allowable limit, replace the

crankshaft bearing 2.

5. If the same dimension bearing is not applicable because of the

crankshaft journal wear, replace it with an undersize one. Refer

to the table and figure.

NOTE

• When you tighten the bearing case screws, do not move

the crankshaft.

(Reference)

• Undersize dimensions of crankshaft journal

9Y1210824ENS0101US0

Oil clearance between

crankshaft and

crankshaft bearing 2

Factory specification

0.0400 to 0.104 mm

0.00158 to 0.00409 in.

Allowable limit

0.20 mm

0.0079 in.

Crankshaft journal O.D.

Factory specification

59.921 to 59.940 mm

2.3591 to 2.3598 in.

Crankshaft bearing 2 I.D. Factory specification

59.980 to 60.025 mm

2.3615 to 2.3631 in.

Undersize

0.2 mm

0.008 in.

0.4 mm
0.02 in.

Dimension

A

2.8 to 3.2 mm radius

0.11 to 0.12 in. radius

2.8 to 3.2 mm radius

0.11 to 0.12 in. radius

*Dimension

B

1.0 to 1.5 mm relief

0.040 to 0.059 in. relief

1.0 to 1.5 mm relief

0.040 to 0.059 in. relief

Dimension

C, D

59.721 to 59.740 mm dia.

2.3513 to 2.3519 in. dia.

59.521 to 59.540 mm dia.

2.3434 to 2.3440 in. dia.

The crankshaft journal must be fine-finished to higher than Rmax = 0.4S

*Holes to be de-burred and edges rounded with 1.0 to 1.5 mm

(0.040 to 0.059 in.) relief.
