TRANSMISSION

L3560, L4060, L4760, L5060, L5460, L6060, WSM

3-S24

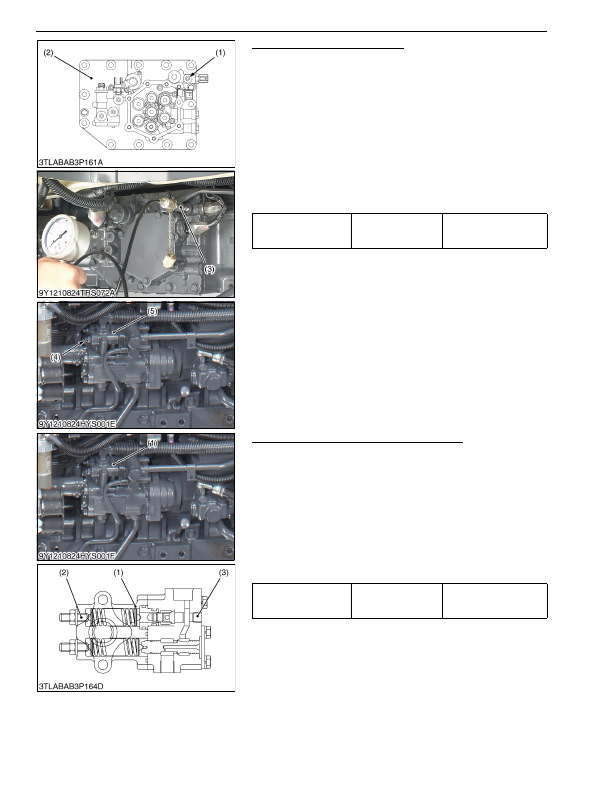

Checking GST System Pressure

1. Start the engine and warm up the transmission fluid, and then

stop the engine.

2. Remove the GST system pressure checking port (1) plug (PT

1/8) on the GST valve (2).

3. Install the GST valve adaptor (see page G-64) to checking port

(1),  and  then  install  the  threaded  joint,  cable  and  pressure

gauge.

4. Start the engine and set the idling speed. Set the shift levers to

"Neutral"

.

5. Measure the pressure.

6. If the measurement is not within factory specifications, adjust

the pressure reducing valve adjustor (4) on the regulating valve

assembly (5).

Condition

• Engine speed

Idling speed

• Oil temperature

40 to 60 °C (104 to 140 °F)

(Reference)

• Turn to clockwise direction → Pressure is increased

• Turn to counterclockwise direction → Pressure is decreased

9Y1210824TRS0182US0

Checking Regulating Valve Setting Pressure

1. Start the engine and warm up the transmission fluid, and then

stop the engine.

2. Remove the pressure checking port (3) plug (PT 1/8).

3. Install the adaptor

"7"

 to checking port (3) and then install the

adaptor

"D"

, the threaded joint, cable and pressure gauge.

4. Start the engine and set the maximum engine speed. Set the

shift levers to

"Neutral"

.

5. Measure the pressure. (Do not turn the steering wheel.)

6. If the measurement is not within factory specifications, adjust

the  regulating  valve  adjustor  (2)  on  the  regulating  valve

assembly (1).

Condition

• Engine speed

Maximum

• Oil temperature

40 to 60 °C (104 to 140 °F)

(Reference)

• Turn to clockwise direction → Pressure is increased

• Turn to counterclockwise direction → Pressure is decreased

9Y1210824TRS0183US0

GST system pressure

Factory specification

2.30 to 2.50 MPa

23.5 to 25.4 kgf/cm

2

334 to 362 psi

(1) GST System Pressure Checking

Port (PT 1/8)

(2) GST Valve

(3) GST Valve Adaptor

(4) Pressure Reducing Valve Adjustor

(5) Regulating Valve Assembly

Regulating valve setting

pressure

Factory specification

2.40 to 2.55 MPa

24.5 to 26.0 kgf/cm

2

348 to 369 psi

(1) Regulating Valve Assembly

(2) Regulating Valve Adjustor

(3) Checking Port (PT 1/8)

KiSC issued 03, 2016 A
