TRANSMISSION

L3560, L4060, L4760, L5060, L5460, L6060, WSM

3-S57

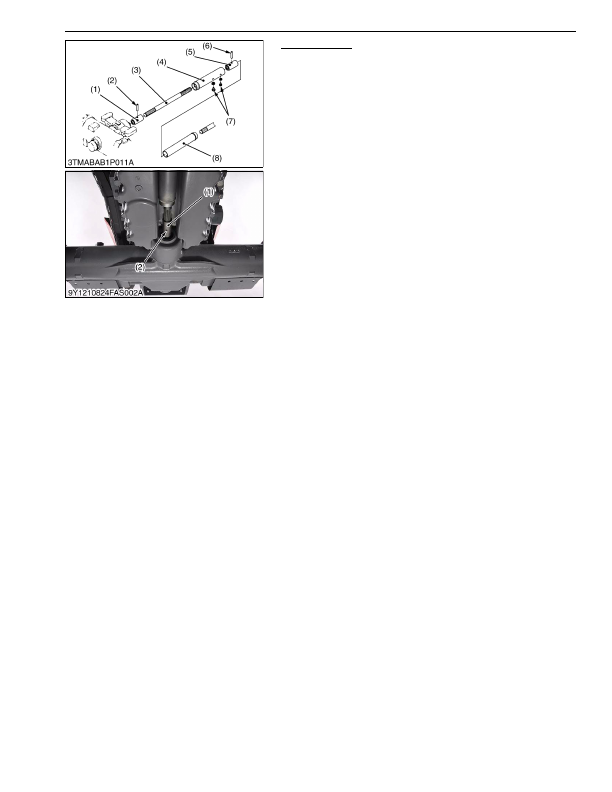

Propeller Shaft

1. Slide the propeller shaft cover (4) and (8) after removing the

screws (7).

2. Tap out the spring pins (2), (6) and slide the couplings (1), (5)

and then remove the propeller shaft with covers (4), (8).

(When reassembling)

• Apply grease to the splines of propeller shaft (3).

9Y1210824FAS0009US0

(1) Coupling

(2) Spring Pin

(3) Propeller Shaft

(4) Propeller Shaft Cover

(5) Coupling

(6) Spring Pin

(7) Screws

(8) Propeller Shaft Cover
