ELECTRICAL SYSTEM

L3560, L4060, L4760, L5060, L5460, L6060, WSM

9-M37

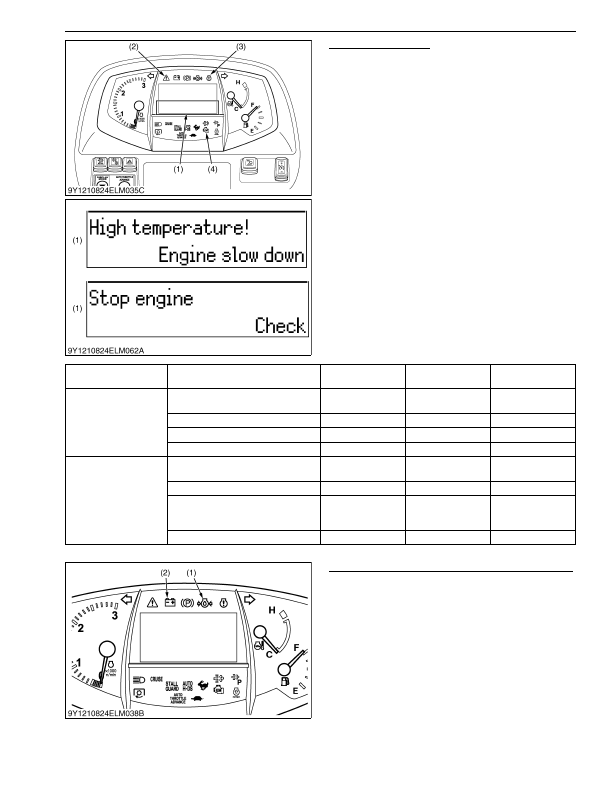

Overheating Warning

The indicator needle reaches the red zone position,

engine coolant is overheated.

The electronic instrument panel informs the rise of

coolant temperature, and overheat warning as shown in

the table below.

9Y1210824ELM0061US0

Engine Oil Pressure and Electric Charging Warning

If  the  engine  oil  pressure  goes  below  the  50  kPa

(0.5 kgf/cm

2

,  7  psi),  the  engine  oil  pressure  warning

indicator (1) will come on. If this should happen during

operation,  and  it  does  not  go  off  when  the  engine  is

accelerated to more than 700 min

-1

 (rpm), check level of

engine oil.

If the alternator is not charging the battery, electrical

charge warning indicator (2) will come on. If this should

happen during operation, check the charging system.

At above-mentioned the warning indicator's lighting,

and it informs warning.

9Y1210824ELM0062US0

(1) Liquid Crystal Display (LCD)

(2) Master System Warning

Indicator

(3) Engine Warning Indicator

(4) Emission Indicator

Coolant Temperature

Electronic Instrument Panel

101 to 109 °C

(214 to 228 °F)

110 to 119 °C

(230 to 246 °F)

120 °C (248 °F)

or more

Normal → High

LCD (1)

–

–

High Temperature !

Engine slow down

Engine Warning Indicator (3)

–

–

Light Up

Emission Indicator (4)

–

Light Up

Light Up

Master System Warning Indicator (2)

–

–

Blink

High → Normal

LCD (1)

Stop engine

Check

High Temperature !

Engine slow down

High Temperature !

Engine slow down

Engine Warning Indicator (3)

Light Up

Light Up

Light Up

Emission Indicator (4)

Light Up

(107 to 109 °C)

(225 to 228 °F)

Light Up

Light Up

Master System Warning Indicator (2)

Blink

Blink

Blink

(1) Engine Oil Pressure Warning

Indicator

(2) Electric Charge Warning

Indicator
