ELECTRICAL SYSTEM

L3560, L4060, L4760, L5060, L5460, L6060, WSM

9-S92

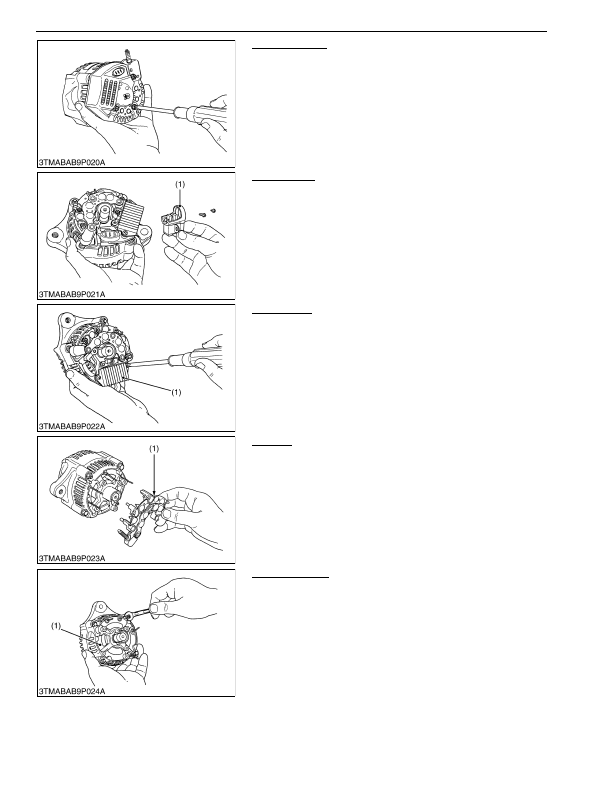

Rear End Cover

1. Remove the three rear end cover screws and the

B

terminal nut,

and remove the rear end cover.

9Y1210824ELS0137US0

Brush Holder

1. Remove the two screws holding the brush holder, and remove

the brush holder (1).

9Y1210824ELS0138US0

IC Regulator

1. Remove the three screws holding the IC regulator, and remove

the IC regulator (1).

9Y1210824ELS0139US0

Rectifier

1. Remove the four screws holding the rectifier and the stator lead

wires.

2. Remove the rectifier (1).

9Y1210824ELS0140US0

Rear End Frame

1. Remove the two nuts and two screws holding the drive end

frame and the rear end frame.

2. Remove the rear end frame (1).

9Y1210824ELS0141US0

(1) Brush Holder

(1) IC Regulator

(1) Rectifier

(1) Rear End Frame
