GENERAL

L3560, L4060, L4760, L5060, L5460, L6060, WSM

G-47

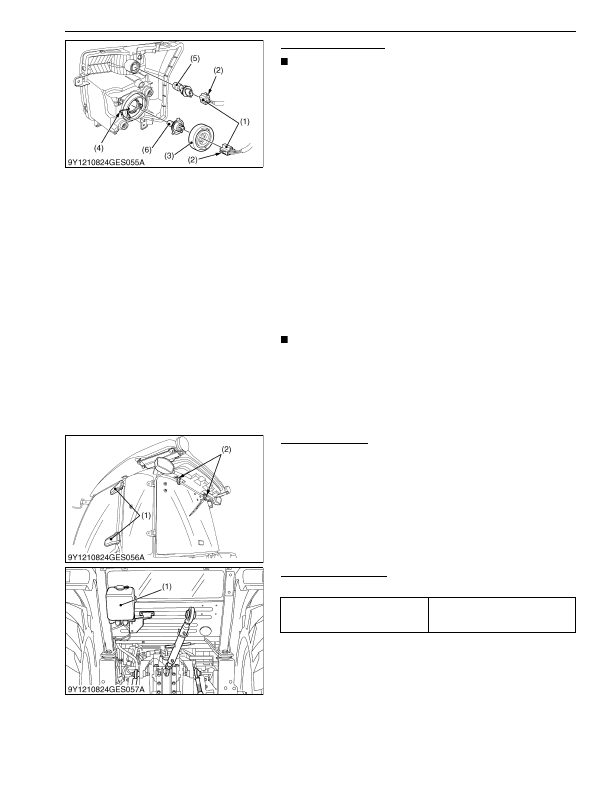

Replacing Head Lamp

NOTE

To avoid personal injury:

• Be careful not to drop the bulb, hit anything against the

lamp, apply excess force, and get the lamp scratched. If
broken, glass may cause injury. Pay more attention to
halogen lamps in particular, which have high pressure
inside.

• Before replacing the lamp, be sure to turn off the light and

wait until the bulb cools down, otherwise, you may get
burned.



Side work light

1. While pushing the lock button, pull and remove the electrical

connector.

2. Turn the bulb counter-clockwise slightly and take out the bulb.

3. Replace  with  a  new  bulb  and  reinstall  the  side  work  light

assembly in the reverse order.



Head lamp

1. While pushing the right and left lock buttons, pull and remove

the electrical connector.

2. Remove the rubber boot.

3. Remove the clamping fixture and take out the bulb.

4. Replace with a new bulb and reinstall the head lamp assembly

in the reverse order.

IMPORTANT

• Be sure to use a new bulb of the specified wattage.
• Never touch the bulb surface (glass) with bare hands.

Fingerprints, for example, may break the bulb.

9Y1210824GEG0093US0

Lubricating Points

9Y1210824GEG0094US0

Adding Washer Liquid

1. Add a proper amount of automobile washer liquid.

9Y1210824GEG0095US0

(1) Electrical Connector

(2) Lock Button

(3) Rubber Boot

(4) Clamping Fixture

(5) Bulb (Side Work Light)

(6) Bulb (Head Lamp)

(1) Door Hinge

(2) Rear Window Hinge

Tank capacity

2.0 L

2.1 U.S.qts

1.8 Imp.qts

(1) Washer Liquid Tank

KiSC issued 03, 2016 A
