CABIN

L3560, L4060, L4760, L5060, L5460, L6060, WSM

10-S19

(3)  Charging the Refrigerant

Charging an Empty System (Liquid)

This procedure is for charging an empty system through the

HI

pressure side with the refrigerant in the liquid state.

 CAUTION

• Never run the engine when charging the system through

the HI pressure side.

• Do not open the LO pressure valve when refrigerant R134a

is being charged in the liquid state (refrigerant container is
set upside-down).
IMPORTANT

• After charging the refrigerant in the liquid state with

approx. 500 g (1.1 lbs) through the HI pressure side, be sure
to recharge the refrigerant in the vapor state to specified
amount through the LO pressure side.

1. Close the

HI

 and

LO

 pressure side valves (1) and (2) of manifold

gauge after the system is evacuated completely.

2. Connect  the  center  charging  hose  (green)  (5)  to  the  can  tap

valve  (3)  fitting,  and  then  loosen  the  center  charging  hose

(green) (5) at the center fitting of manifold gauge until hiss can

be heard.

Allow the air to escape for few seconds and tighten the nut.

3. Open  the

HI

  pressure  side  valve  (2)  fully,  and  keep  the

container  upside-down  to  charge  the  refrigerant  in  the  liquid

state from the

HI

 pressure side.

4. Charge  the  refrigerant  in  the  liquid  state  with  approx.  500  g

(1.1 lbs) from the

HI

 pressure side.

NOTE

• If LO pressure gauge does not show a reading, the system

is clogged and must be repaired.

5. Close the

HI

 pressure side valve (2) of manifold gauge and can

tap valve of refrigerant container.

9Y1210824CAS0044US0

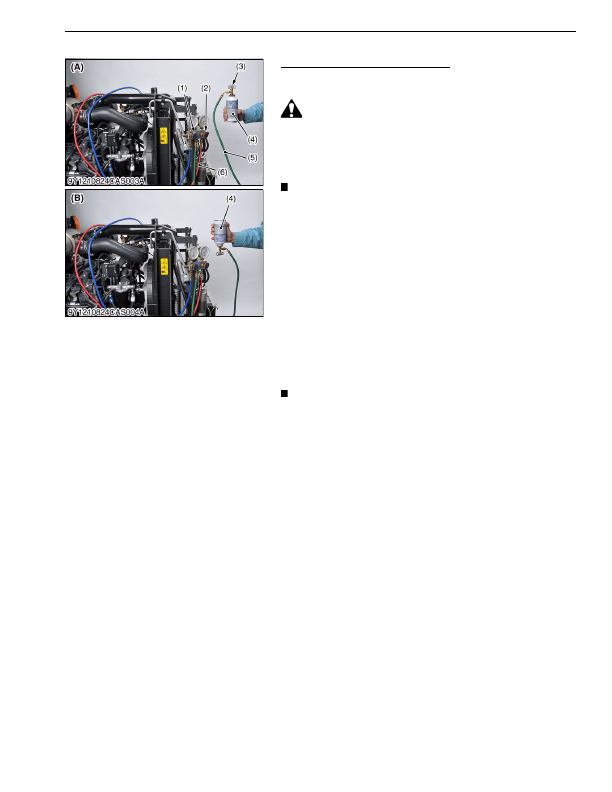

(1)

LO

 Pressure Side Valve

(2)

HI

 Pressure Side Valve

(3) Can Tap Valve

(4) Refrigerant Container (R134a)

(5) Charging Hose (Green)

(6) Charging Hose (Red)

(7) Charging Hose (Blue)

(A) Refrigerant Container "Upside"
(B) Refrigerant Container "Down

Side"

KiSC issued 03, 2016 A
