CABIN

L3560, L4060, L4760, L5060, L5460, L6060, WSM

10-S20

Charging an Empty or Partially Charged System (Vapor)

This procedure is to charge the system through the

LO

 pressure

side  with  refrigerant  in  the  vapor  state.  When  the  refrigerant

container is set right side up, refrigerant will enter the system as a

vapor.

 CAUTION

• Never open the HI pressure side valve of manifold gauge

while the engine is running.
NOTE

• Do not turn the refrigerant container upside-down when

charging the system by running the engine.

• Put refrigerant container into a pan of warm water

(maximum temperature 40 °C (104 °F)) to keep the vapor
pressure in the container slightly higher than vapor
pressure in the system.

1. Check that the

HI

 pressure side valve (4) is closed.

2. Start the engine and set an approx. 1500 min

-1

 (rpm).

3. Turn on the A/C switch.

Set the temperature control lever to

maximum cooling

 position

and the blower switch to

HI

 position.

4. Open the

LO

 pressure side valve (5) of manifold gauge and the

can  tap  valve  (3)  on  refrigerant  container  and  charge  the

refrigerant  until  air  bubbles  in  the  sight  glass  of  the  receiver

vanish.

5. After  charging  the  specified  amount  of  refrigerant  into  the

system, close the

LO

 pressure side valve (5) of manifold gauge

and can tap valve (3), then stop the engine.

6. Check for gas leak with an electric gas leak tester. (See page

G-70.)

(Reference)

• Specified amount of refrigerant (total)

770 to 870 g (1.70 to 1.90 lbs) [Refrigerant R134a]

• Manifold gauge indication at fully charged system (at ambient

temperature: 30 °C (86 °F))

HI

 pressure side

1.27 to 1.66 MPa (13 to 17 kgf/cm

2

, 185 to 242 psi)

LO

 pressure side

0.15 to 0.20 MPa (1.5 to 2.0 kgf/cm

2

, 21 to 28 psi)

9Y1210824CAS0045US0

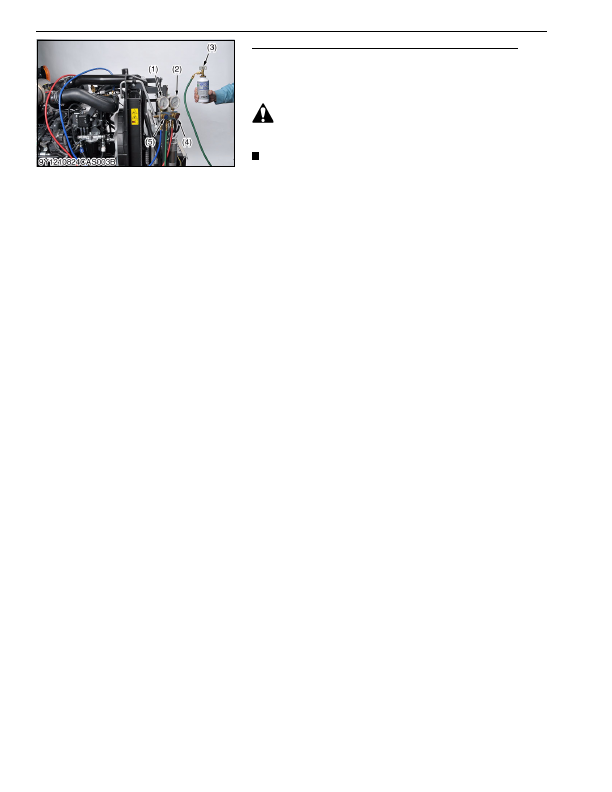

(1)

LO

 Pressure Gauge

(2)

HI

 Pressure Gauge

(3) Can Tap Valve

(4)

HI

 Pressure Side Valve

(5)

LO

 Pressure Side Valve

KiSC issued 03, 2016 A
