TRANSMISSION

L3560, L4060, L4760, L5060, L5460, L6060, WSM

3-S119

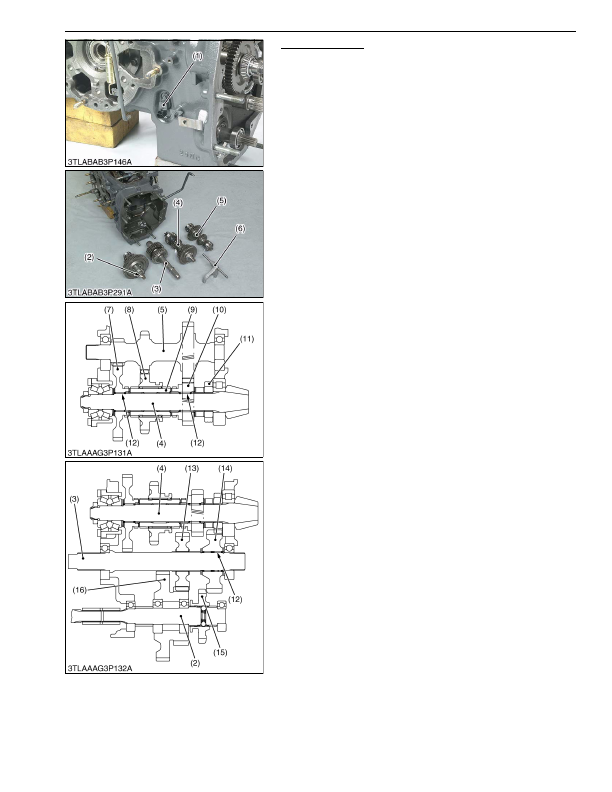

Shaft Assemblies

1. Remove the traveling speed sensor (1).

2. Remove the spiral bevel pinion shaft assembly (4) with shift fork

(6), range gear shaft assembly (5) and PTO drive shaft

assembly (3).

3. Remove the front wheel drive shaft (2).

(When reassembling)

• Apply transmission fluid to needle bearings (12).

9Y1210824TRS0123US0

(1) Traveling Speed Sensor

(2) Front Wheel Drive Shaft

(3) PTO Drive Shaft

(4) Spiral Bevel Pinion Shaft

(5) Range Gear Shaft

(6) Shift Fork

(7) 52T Gear

(8) 35T Shifter Gear

(9) Spline Boss

(10) 20T Gear

(11) 18T Gear (L3560, L5460, L6060)

19T Gear (L4060)

16T Gear (L4760)

(12) Needle Bearing

(13) 27T Gear (CABIN Model)

(14) 29T Gear

(L3560, L4060, L5460, L6060)

31T Gear (L4760)

(15) 24T Shifter Gear

(16) 26T-60T Gear (CABIN Model)

KiSC issued 03, 2016 A

1 ... 434435436437438439440441442

Detailed Information for Kubota L3560 Owners Manual

Lists of information found in Kubota L3560 Owners Manual - Page 438

1. Remove the traveling speed sensor (1).
2. Remove the spiral bevel pinion shaft assembly (4) with shift fork (6), range gear shaft assembly (5) and PTO drive shaft assembly (3).
3. Remove the front wheel drive shaft (2).

Apply transmission fluid to needle bearings (12).
