TRANSMISSION

L3560, L4060, L4760, L5060, L5460, L6060, WSM

3-S118

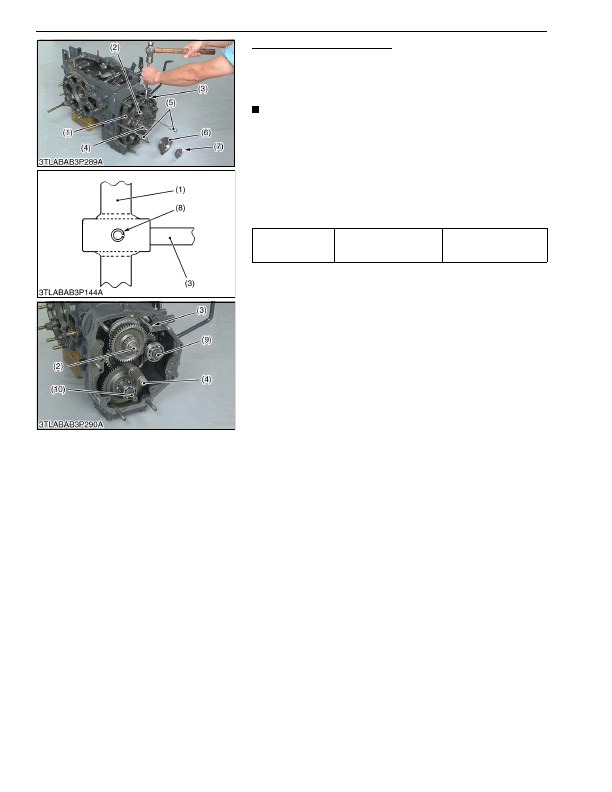

Transmission Bearing Holder

1. Remove the transmission bearing holder mounting screws.

2. Tap out the spring pin (8) on the shift fork rod (3).

3. Jack up the bearing holder (1) by using the two jack screws (5)

until the taper roller bearing (7) can be removed.

NOTE

• Jack up the bearing holder while hitting the two shafts (2),

(4) by copper hummer or soft hummer.

4. Jack up more and remove the transmission bearing holder (1).

(When reassembling)

• Tap in the transmission bearing holder with soft hummer until

contact to transmission case, and then tighten the screws to

specified torque.

• Tap in the spring pin (8) so that its split portion may face

forward. (Refer to figure.)

9Y1210824TRS0122US0

Tightening torque

Transmission bearing

holder mounting screw

48 to 55 N·m

4.9 to 5.7 kgf·m

36 to 41 lbf·ft

(1) Transmission Bearing Holder

(2) Spiral Bevel Pinion Shaft

(3) Shift Fork Rod for Range Gear Shift

(4) PTO Drive Shaft

(5) Jack Screw

(6) Pinion Bearing Case

(7) Taper Roller Bearing

(8) Spring Pin

(9) Range Gear Shaft

(10) Front Wheel Drive Shaft

KiSC issued 03, 2016 A
