ELECTRICAL SYSTEM

L3560, L4060, L4760, L5060, L5460, L6060, WSM

9-S81

(7) Crankshaft Position Sensor

IMPORTANT

• When replacing the crankshaft position sensor, be sure to do crankshaft position sensor correction. (See

page 1-S71 to 1-S73.)
NOTE

• Since it is not possible to do unit checking for this sensor, judge the sensor is faulty if the relating electric

circuit is normal.

9Y1210824ELS0113US0

Connector Voltage

1. Disconnect the connector, and turn the main key switch

"ON"

position.

2. Measure the voltage with a voltmeter across the terminals

shown in the table below.

3. If the reference value is not indicated as shown in the table

below, check the relating electric circuit.

9Y1210824ELS0114US0

Voltage

Main switch at

"ON"

Terminal

1

–

chassis

Approx. 5 V

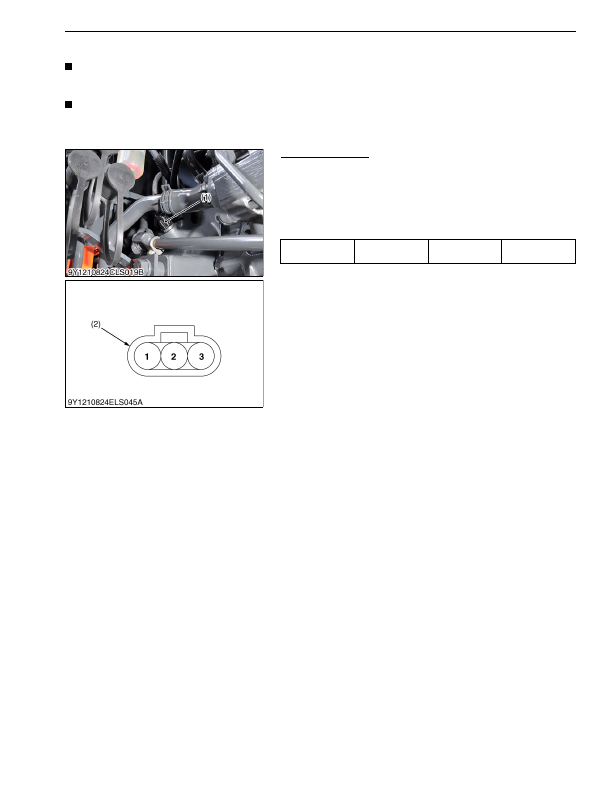

(1) Crankshaft Position Sensor

(2) Connector (Harness Side)

KiSC issued 03, 2016 A

1 ... 715716717718719720721722723

Detailed Information for Kubota L3560 Owners Manual

Lists of information found in Kubota L3560 Owners Manual - Page 719

73.) NOTE • Since it is not possible to do unit checking for this sensor, judge the sensor is faulty if the relating electric circuit is normal.
1. Disconnect the connector, and turn the main key switch "ON" position.
2. Measure the voltage with a voltmeter across the terminals shown in the table below.
3. If the reference value is not indicated as shown in the table below, check the relating electric circuit.

When replacing the crankshaft position sensor, be sure to do crankshaft position sensor correction.
Since it is not possible to do unit checking for this sensor, judge the sensor is faulty if the relating electric circuit is normal.
