Table of Contents

L3560,L4060,L4760,L5060,L5460,L6060
9 ELECTRICAL SYSTEM
background image

CABIN

L3560, L4060, L4760, L5060, L5460, L6060, WSM

10-S31

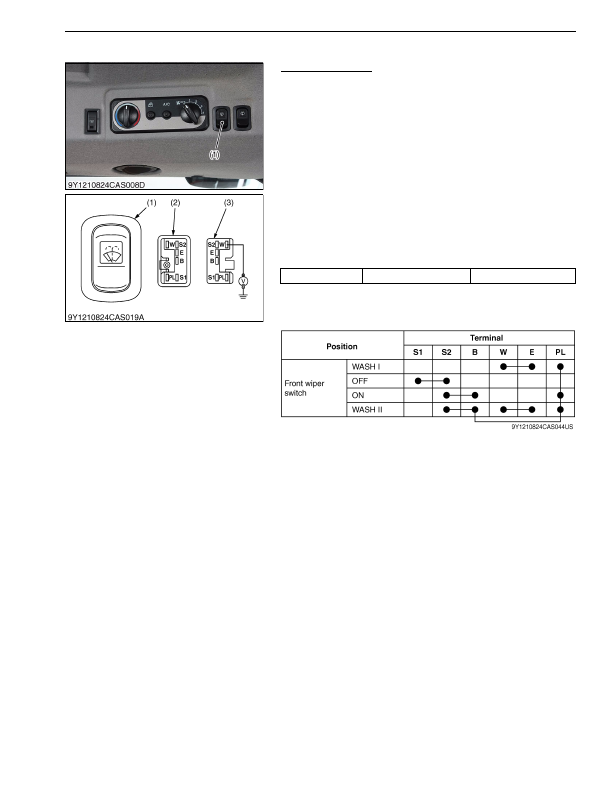

(10) Front Wiper Switch

Front Wiper Switch

1. Remove the outer roof, and disconnect the front wiper switch

connector (1).

2. Perform the following checkings

1)

 and

2)

.

9Y1210824CAS0064US0

1) Connector Voltage

1. Turn the main switch

"ON"

.

2. Measure the voltage with a voltmeter across the connector

W

terminal and chassis.

3. If the voltage differs from the battery voltage, the wiring harness,

fuse or main switch is faulty.

2) Front Wiper Switch

1. Check the continuity through the switch with an ohmmeter.

2. If continuity specified below is not indicated, the switch is faulty.

(Reference)

WASH I

"OFF"

 side of the wiper switch remains pushed in.

WASH II

"ON"

 side remains pushed in after the wiper switch is

switched

"ON"

 and remains switched

"ON"

.

9Y1210824CAS0065US0

(1) Front Wiper Switch

Voltage

W

 terminal – Chassis

Approx. battery voltage

(1) Front Wiper Switch

(2) Front Wiper Switch Connector

(Switch Side)

(3) Front Wiper Switch Connector

(Wiring Harness Side)

a:

From Main Switch AC Terminal

KiSC issued 03, 2016 A

Detailed Information for Kubota L3560 Owners Manual

Lists of information found in Kubota L3560 Owners Manual - Page 774

  • 1. Remove the outer roof, and disconnect the front wiper switch connector (1).
  • 2. Perform the following checkings 1) and 2) .
  • 1. Turn the main switch "ON" .
  • 2. Measure the voltage with a voltmeter across the connector W terminal and chassis.
  • 3. If the voltage differs from the battery voltage, the wiring harness, fuse or main switch is faulty.
  • 1. Check the continuity through the switch with an ohmmeter.
  • 2. If continuity specified below is not indicated, the switch is faulty.
  • WASH I : "OFF" side of the wiper switch remains pushed in.
  • WASH II : "ON" side remains pushed in after the wiper switch is switched "ON" and remains switched "ON" .
