(8) Compressor Relay

Compressor Relay Checking

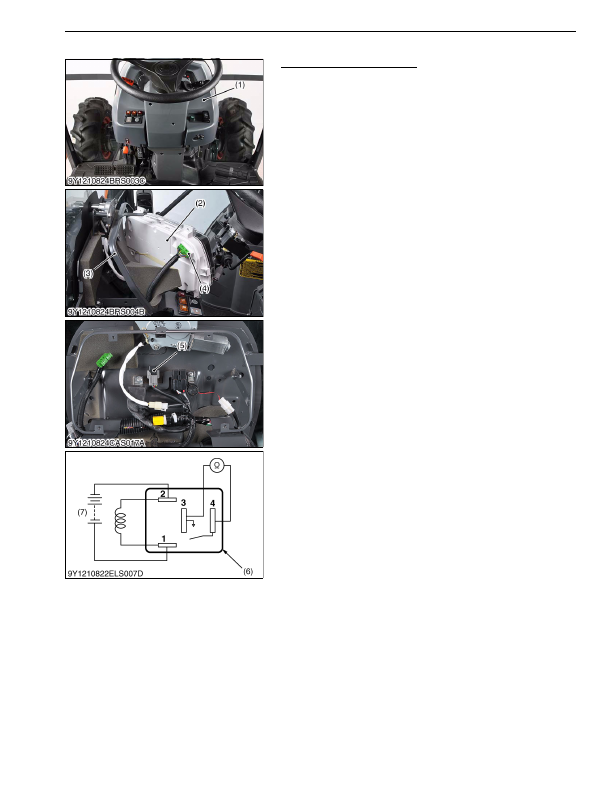

1. Remove the panel cover (1).

2. Remove the electronic instrument panel (2). from panel frame

(3).

3. Disconnect the panel connector (4).

4. Remove the compressor relay (5).

5. Apply battery voltage across terminals

1

 and

2

, and check for

continuity across terminals

3

 and

4

.

6. If  continuity  is  not  established,  across  the  terminal

3

  and

4

,

replace it.

9Y1210824CAS0062US0

(1) Panel Cover

(2) Electronic Instrument Panel

(3) Panel Frame

(4) Panel Connector

(5) Compressor Relay

(6) Connector (Relay)

(7) Battery

KiSC issued 03, 2016 A

Detailed Information for Kubota L3560 Owners Manual

Lists of information found in Kubota L3560 Owners Manual - Page 772

  • 1. Remove the panel cover (1).
  • 2. Remove the electronic instrument panel (2).
  • 3. Disconnect the panel connector (4).
  • 4. Remove the compressor relay (5).
  • 5. Apply battery voltage across terminals 1 and 2 , and check for continuity across terminals 3 and 4 .
  • 6. If continuity is not established, across the terminal 3 and 4 , replace it.
