CLUTCH

L3560, L4060, L4760, L5060, L5460, L6060, WSM

2-S20

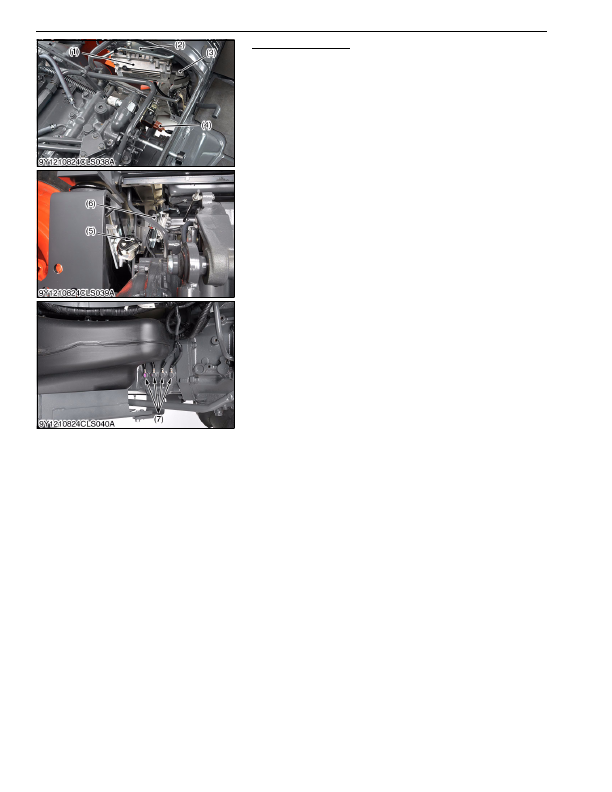

Rear Wiring Harness

1. Remove the engine ECU support (2).

2. Disconnect the engine ECU connector (3).

3. Disconnect the range gear sensor connector (4).

4. Disconnect the joint connectors (5).

5. Remove the engine ECU power relay and glow relay (6) from

the engine ECU support (2).

6. Disconnect the earth cables (7).

9Y1210824CLS0019US0

(1) Engine ECU

(2) Engine ECU Support

(3) Engine ECU Connector

(4) Range Gear Sensor Connector

(5) Joint Connector

(6) Glow Relay

(7) Earth Cable

KiSC issued 03, 2016 A
