CLUTCH

L3560, L4060, L4760, L5060, L5460, L6060, WSM

2-S21

Fuel Tanks

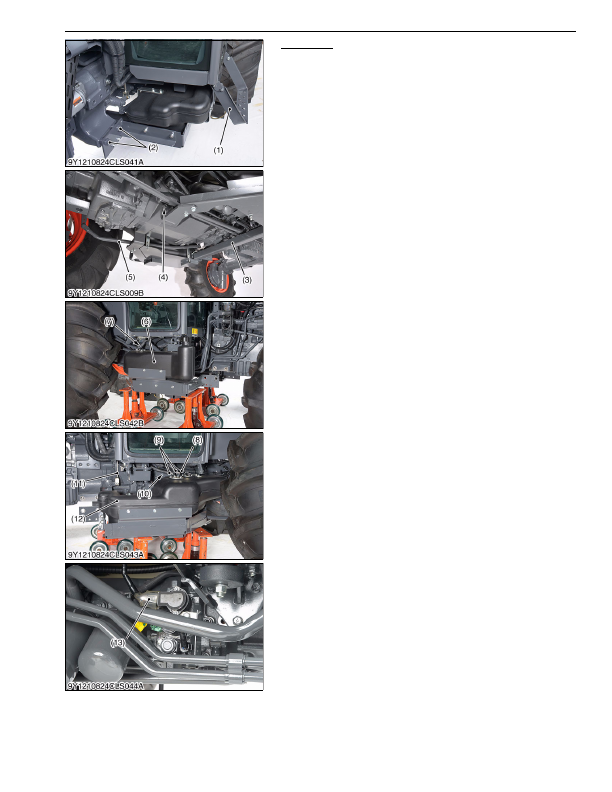

1. Remove the right and left steps (1).

2. Remove the fuel hose cover (3).

3. Remove the brake rod L.H. (5).

4. Place the disassembling stands under the right and left fuel

tanks (6), (12).

5. Remove the front (2) and rear support mounting screws (4) of

the right and left fuel tanks (6), (12).

6. Lower the fuel tanks (6), (12) together with the disassembling

stands.

7. Disconnect the fuel hoses (9), overflow hose (10) and fuel level

sensor connector (8) from the fuel tank L.H. (12).

8. Disconnect the fuel hose (7) from the fuel tank R.H. (6).

9. Remove the right and left brake pedal rod (11).

10. Disconnect the swashplate position sensor connector (10).

9Y1210824CLS0020US0

(1) Step

(2) Front Support Mounting Screw

(3) Fuel Hose Cover

(4) Rear Support Mounting Screw

(5) Brake Rod L.H.

(6) Fuel Tank R.H.

(7) Fuel Hose

(8) Fuel Level Sensor Connector

(9) Fuel Hose

(10) Overflow Hose

(11) Brake Pedal Rod L.H.

(12) Fuel Tank L.H.

(13) Swashplate Position Sensor

Connector

KiSC issued 03, 2016 A
