TRANSMISSION

L3560, L4060, L4760, L5060, L5460, L6060, WSM

3-S105

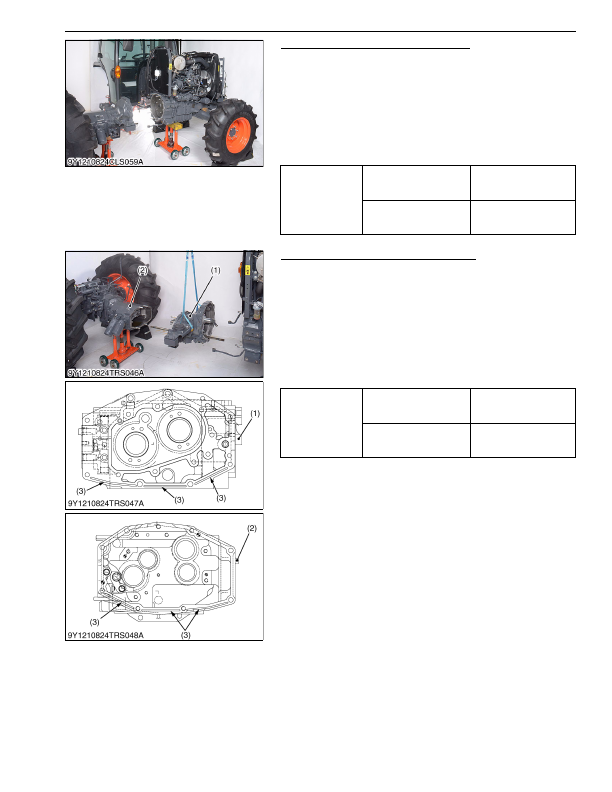

Separating Engine from Clutch Housing

1. Place  the  disassembling  stands  under  the  engine  and  clutch

housing.

2. Remove the engine and clutch housing mounting screws and

nuts.

3. Separate the engine from clutch housing.

(When reassembling)

• Apply grease to the spline of clutch shaft.

• Apply liquid gasket (Three Bond 1211 or equivalent) to joint face

of the flywheel housing and clutch housing.

9Y1210824CLS0025US0

Separating Clutch Housing and Mid Case

1. Remove the clutch housing and mid case mounting screws and

nuts.

2. Separate the clutch housing (1) and mid case (2).

(When reassembling)

• Gasket should be replaced with new one.

• Apply liquid gasket (Three Bond 1208C or equivalent) to joint

face of the clutch housing (1) and mid case (2).

• Make sure to apply liquid gasket to elongated grooves (3) on the

mid  case  face  and  to  those  on  the  lower  side  of  the  clutch

housing face.

9Y1210824TRS0091US0

Tightening torque

Engine and clutch housing

mounting screw

78 to 90 N·m

7.9 to 9.2 kgf·m

58 to 66 lbf·ft

Engine and clutch housing

mounting nut

103 to 117 N·m

10.5 to 12.0 kgf·m

76.0 to 86.7 lbf·ft

Tightening torque

Clutch housing and mid

case mounting nut

103 to 117 N·m

10.5 to 12.0 kgf·m

76.0 to 86.7 lbf·ft

Clutch housing and mid

case mounting screw

78 to 90 N·m

7.9 to 9.2 kgf·m

58 to 66 lbf·ft

(1) Clutch Housing

(2) Mid Case

(3) Elongated Groove

KiSC issued 03, 2016 A
