Front Axle Drive Shaft; Charge Pump; Front Side- Page 425

TRANSMISSION

L3560, L4060, L4760, L5060, L5460, L6060, WSM

3-S106

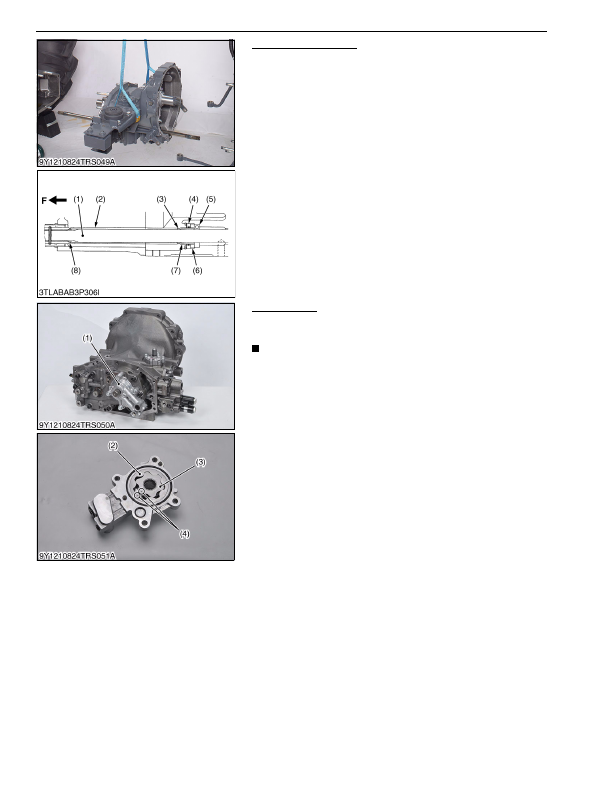

Front Axle Drive Shaft

1. Pull out the front axle drive shaft (1) to the rear side.

(When reassembling)

• Install  the  front  axle  drive  shaft  (1)  from  front  side  after

assembling the clutch housing case (HST unit) and mid case.

Then install the bearing (5), sleeve (7), collar (6), oil seal (8),

internal snap ring, O-ring (3) and spacer (2) in order.

• Apply grease to the oil seal (4).

9Y1210824TRS0102US0

Charge Pump

1. Remove the charge pump (2).

(When reassembling)

NOTE

• Replace the O-ring with a new one.
• Alignment mark should be front side.

9Y1210824TRS0103US0

(1) Front Axle Drive Shaft

(2) Spacer

(3) O-ring

(4) Oil Seal

(5) Bearing

(6) Collar

(7) Sleeve

(8) Oil Seal

F:

Front Side

(1) Charge Pump

(2) Outer Rotor

(3) Inner Rotor

(4) Alignment Mark

KiSC issued 03, 2016 A
